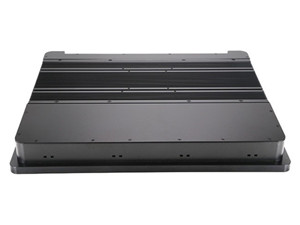

FS-P119
19" Panel PC chassis for mini-ITX system with Projected Capacitive Type Touch Screen
Product Introduction

Model NumberFS-P119
RoHS ComplianceYes
MaterialSGCC / Anodized aluminum heatsink
LCDResolution: 1280xRGBx1024
Brightness: 250cd/m2 (typ.)
Color Support: 16.7M/262k
Contrast Ratio: 1000:1 (typ.)
Response Time: 5ms (typ.)
Touch optionTouchscreen Type: Projected Capacitive
Surface Hardness: ò7H
Durability: 100,000,000 times
Transparency: ò90%
TDPMax. 45W
Storage2.5" HDD x 2
Power Solution Option 1
Internal DC Power BoardC7 (80W) DC Power Board
External AC Adapter60W: Input (AC 100~240V);
Output (DC 12V@5A)
Power Solution Option 2
Internal DC Power BoardC7 (80W) DC Power Board
External AC Adapter80W: Input (AC 100~240V);
Output (DC 12V@6.67A)
Power Solution Option 3
Internal DC Power BoardC4 (150W, 19V~24V) DC Power Board
External AC Adapter90W: Input (AC 100~240V);
Output (DC 19V@4.74A)
Power Solution Option 4
Internal DC Power BoardC4 (150W, 19V~24V) DC Power Board
External AC Adapter120W: Input (AC 100~240V);
Output (DC 19V@6.32A)
Dimensions (WxHxD)18.00" x 2.15" x 15.04"
457 mm x 55 mm x 382 mm
