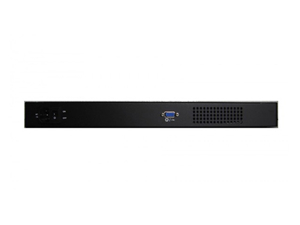

WL-920-SMK
Build-to-Order - 1U single-rail rack mount LCD console with 1x KVM switch
Product Introduction
WL-920-SMK is 1U slim industrial monitor keyboard.This revolutionary monitor keyboard combines a spectacular display coupled with a keyboard with built-in pointing device in a compact unit that measures only 1U in height. Occupying a fraction of the space of traditional monitor and keyboard units, the installation of the WL-920-SMK leaves ample space for other critical components. With built-in analog-to-digital conversion board, the WL-920-SMK can be connected to any standard VGA graphics card for immediate On Screen Display. The monitor key-board unit has a built-in slide rail and mounts easily onto any 19" rack mount cabinet.

Model NumberWL-920-SMK
RoHS ComplianceYes
Cabinet display17 inches OR 19 inches
Cabinet resolution capabilities1280 X 1024
Viewing angle170° (H) X 160° (V)
PortsD-SUB 15 PIN SINGLE-PORT KVM
Power supply60W, 100-240VAC, 50/60HZ
Touch optionN/A
Dimensions (WxHxD)17.42" x 1.73" x 23.62"
442 mm x 44 mm x 600 mm
Download
FAQ


There are no FAQ entries for this model.
