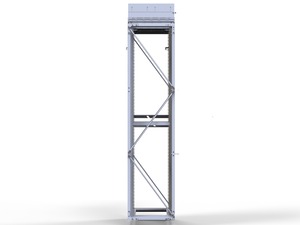

TCS-54120 Server Rack
Build-to-Order - 54U 600mm Wide, 1200mm Deep, Anti-Seismic Server Cabinet
  • Fully Customizable Based on your Specifications
  • ANSI/EIA RS-310-C/D Standard
  • 54U 1200MM Assembled Steel Structure
  • GR63-ZONE4 Certified with 1763LB Loading Weight
  • UL2416 Certified
Product Introduction
TCS-54120 Series Cabinet is UL2416 Certified and built with high-quality SPCC cold rolled steel with assembled structures to sustain GR 63 Zone 4 test w/o damaging rack-mounted equipment. TCS-54120 has the option to mount with 4 detachable molded rods to increase overall cabinet strength to easily dissipate unexpected seismic energy. TCS-54120 can survive vertical 10CM drop test with loading weight 2204LB without damaging the structure. This stylish and secure anti-seismic server rack can protect your investment in computer equipment and offers a superior safety to your data center environment. TCS-54120 is fully customizable to fulfill your specific requirements.
**Test Report Available Upon Request**

Model NumberTCS-54120 Server Rack
RoHS ComplianceYes
Form Factor54U
Industry StandardEIA-310
MaterialSECC
ColorWhite
Loading Capacity2000Lb
Supported Chassis Depth39.37" and under
Dimensions (WxHxD)23.62" x 98.43" x 47.24"
600 mm x 2,500 mm x 1,200 mm
