FS-1003
Fanless Desktop for 3.5"SBC
Fanless Desktop for 3.5"SBC
Features
| Product Specifications | |
| Model Number | FS-1003 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 1 |

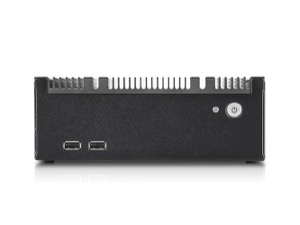

| Front Panel | Power SW. Power LED. HDD LED. USB 2.0 Port x2. |

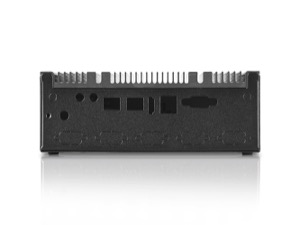

| Back Panel | Gigabit LAN x 2. HDMI x1. USB 3.0 Port x2. VGA x 1. COM Port x4. GPIO x1. ANT x 2. Audio IN/OUT. 9V-36V DC-in. |
| Motherboard Size: | For SBC-230 Motherbo |
| External Adapter Input | 9V-36V DC In |
| Dimensions (WxHxD) | 7.40" x 2.70" x 5.80" 188.0 mm x 68.6 mm x 147.3 mm |
| Images | Model # | Motherboard Size | Company Name | Processor family | Compatible processor |
 |
SBC-230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
SBC-E230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
SBC-E230-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
 |
SBC-220 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Braswell | N3160 N3150 |
 |
SBC-210 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
 |
SBC-211 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
 |
SBC-212-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
