FS-1007
Fanless Desktop for Mini-ITX

Features
Product Specifications
Model NumberFS-1007
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2.5" HDD x 1

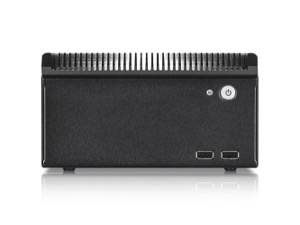

Front PanelPower SW.
Power LED.
HDD LED.
USB 2.0 Port x2.

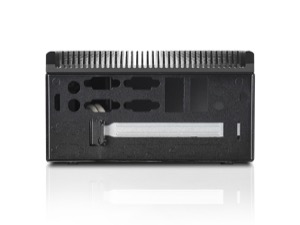

Back Panel HDMI x1.
PS/2 x 2 (1 x keyboard, 1 x mouse).
COM port x6.
VGA x 1.
Gigabit LAN x 2.
USB 2.0 Port x2.
USB 3.0 Port x2.
Expansion PCI/PCI-E Raw slot x1.
LPT x 1.
ANT x 2.
Audio IN/OUT.
9V-36V DC-in.
Motherboard Size:For IMB-150 Motherbo
External Adapter Input9V-19V DC In
Dimensions (WxHxD)7.00" x 3.70" x 8.20"
177.8 mm x 94.0 mm x 208.3 mm
Compatible Motherboards

Images Model # Motherboard Size Company Name Processor family Compatible processor
SBC-230 3.5" SBC (5.8-in x 4.0-in) asrock Intel Apollo Lake E3940
N4200
N3350
SBC-E230 3.5" SBC (5.8-in x 4.0-in) asrock Intel Apollo Lake E3940
N4200
N3350
SBC-E230-WT 3.5" SBC (5.8-in x 4.0-in) asrock Intel Apollo Lake E3940
N4200
N3350
SBC-220 3.5" SBC (5.8-in x 4.0-in) asrock Intel Braswell N3160
N3150
SBC-210 3.5" SBC (5.8-in x 4.0-in) asrock Intel Baytrail E3845
E3826
J1900
N2930
N2920
SBC-211 3.5" SBC (5.8-in x 4.0-in) asrock Intel Baytrail E3845
E3826
J1900
N2930
N2920
SBC-212-WT 3.5" SBC (5.8-in x 4.0-in) asrock Intel Baytrail E3845
E3826
J1900
N2930
N2920
IMB 156 Mini-ITX (6.7-in x 6.7-in) asrock Intel Apollo Lake E3940
N4200
N3350
IMB E156 Mini-ITX (6.7-in x 6.7-in) asrock Intel Apollo Lake E3940
N4200
N3350
IMB 157 Mini-ITX (6.7-in x 6.7-in) asrock Intel Apollo Lake E3940
N4200
N3350
IMB 154 Mini-ITX (6.7-in x 6.7-in) asrock Intel Braswell N3160
N3150
IMB 150 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920
IMB 151 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920
IMB 152 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920
IMB 153 Mini-ITX (6.7-in x 6.7-in) asrock Intel Baytrail J1900
N2930
N2920
