Product Specifications | |
Model Number | FS-1010 |
RoHS Compliance | Yes |
Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 1 |

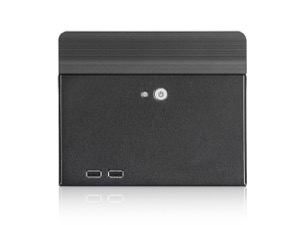

Front Panel | Power SW. Power LED. HDD LED. USB 2.0 Port x2. |

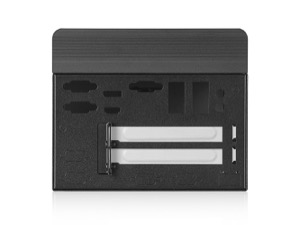

Back Panel | Expansion PCI/PCI-E Raw slot x1. USB 3.0 Port x4. VGA x 1. COM port x6. HDMI x1. Gigabit LAN x 2. Display Port x2 MIC x 1. Line out x1. 12V DC in. |
Motherboard Size: | For IMB-194-L Mother |
External Adapter Input | C7(80W) |
Dimensions (WxHxD) | 7.00" x 5.40" x 10.30" 177.8 mm x 137.2 mm x 261.6 mm |
Images | Model # | Motherboard Size | Company Name | Processor family | Compatible processor |
![]() |
SBC-230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
SBC-E230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
SBC-E230-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
SBC-220 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Braswell | N3160 N3150 |
![]() |
SBC-210 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
![]() |
SBC-211 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
![]() |
SBC-212-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
![]() |
IMB 156 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
IMB E156 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
IMB 157 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
IMB 154 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Braswell | N3160 N3150 |
![]() |
IMB 150 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 151 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 152 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 153 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 180 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM87 | Intel Core i7-4930MQ Intel Core i7-4702MQ Intel Core i5-4330M Intel Core i5-4200M Intel Core i3- |
![]() |
IMB 182 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM87 | Intel Core i7-4930MQ Intel Core i7-4702MQ Intel Core i5-4330M Intel Core i5-4200M Intel Core i3- |
![]() |
IMB 170 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM77 | Intel Core i7-3610QE Intel Core i5-3610ME Intel Core i3-3120ME Intel Core i7-2710QE Intel Core i |
