Product Specifications | |
Model Number | FS-1018 |
RoHS Compliance | Yes |
Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 2. |

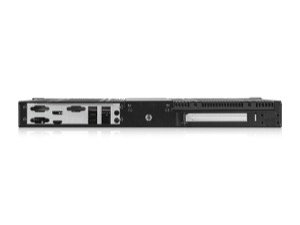

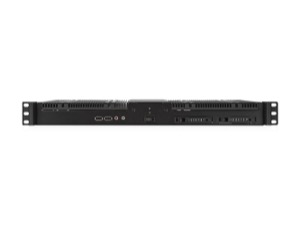

Front Panel | Power SW x1 + LED + HDD LCD USB x2 (USB3.0 optional). SATA 2.5" HDD tray x1 (Hot-swap) |
Back Panel | Standard I/O shield. Solt-card x1. |
Form Factor: | 1U |
Motherboard Size: | For Mini-ITX MB |
External Adapter Input | 1. C7(80W) 12 DCVin Converter. 2.C4(150W) 19V-24V Cnverter |
Dimensions (WxHxD) | 17.00" x 1.70" x 15.00" 431.8 mm x 43.2 mm x 381.0 mm |
Images | Model # | Motherboard Size | Company Name | Processor family | Compatible processor |
![]() |
SBC-230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
SBC-E230 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
SBC-E230-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
SBC-220 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Braswell | N3160 N3150 |
![]() |
SBC-210 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
![]() |
SBC-211 | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
![]() |
SBC-212-WT | 3.5" SBC (5.8-in x 4.0-in) | asrock | Intel Baytrail | E3845 E3826 J1900 N2930 N2920 |
![]() |
IMB 156 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
IMB E156 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
IMB 157 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Apollo Lake | E3940 N4200 N3350 |
![]() |
IMB 154 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Braswell | N3160 N3150 |
![]() |
IMB 150 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 151 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 152 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 153 | Mini-ITX (6.7-in x 6.7-in) | asrock | Intel Baytrail | J1900 N2930 N2920 |
![]() |
IMB 180 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM87 | Intel Core i7-4930MQ Intel Core i7-4702MQ Intel Core i5-4330M Intel Core i5-4200M Intel Core i3- |
![]() |
IMB 182 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM87 | Intel Core i7-4930MQ Intel Core i7-4702MQ Intel Core i5-4330M Intel Core i5-4200M Intel Core i3- |
![]() |
IMB 170 | Mini-ITX (6.7-in x 6.7-in) | asrock | QM77 | Intel Core i7-3610QE Intel Core i5-3610ME Intel Core i3-3120ME Intel Core i7-2710QE Intel Core i |
