FS-11101
1U rackmount fanless chassis for Mini-ITX
1U rackmount fanless chassis for Mini-ITX

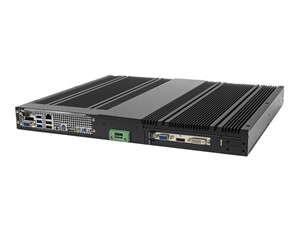

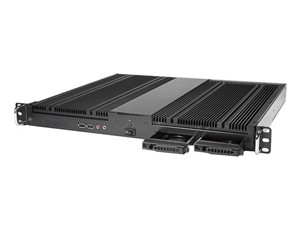

FS-11100 is a 1U rackmount Fanless chassis. Support Mini-ITX motherboard and 1 x full height expansion slot. Featured 2 x hot swappable 2.5" hdd and oversize top aluminum lid for best heat dissipation.
Features
- Dual extensive aluminum-made heat sinks
- Primary heat sink for CPU: TDP 35W; Secondary heat sink forexpansion card: TDP 45W.
- Supports 1 x expansion slot; 2 x 2.5" hot-swap
| Product Specifications | |
| Model Number | FS-11101 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2 x 2.5" HDD Hot Swappable Drive Bay: 2 x 2.5" HDD |
| Form Factor: | 1U |
| Motherboard Size: | Mini-ITX |
| Material | Aluminum chassis with stylish aluminum front bezel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 20 |
| Mounting Option | Optional sliding rail, rear/center mount brackets |
| Front LED Indicator | 1 x Activity; 1 x Power |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Front Audio In/Out | 1 x Line Out |
| MIC | 1 |
| Memory Height | Accepts standard size |
| Expansion Slot | 1 x PCI |
| Compact Flash Slot | 1 x CF Cutoff (Front) |
| I/O Shield | 2 x Universal I/O |
| DB9 Cutoff Hole | 2 |
| Dimensions (WxHxD) | 19.00" x 1.73" x 15.60" 482.6 mm x 43.9 mm x 396.2 mm |
