FS-11901
1U rackmount with Multi I/O on the front panel
1U rackmount with Multi I/O on the front panel

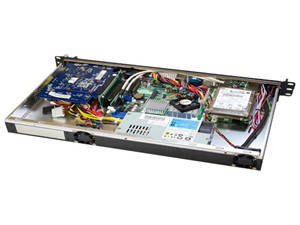

FS-11901 is another unique 1u chassis feature 2 x 2.5" hot swappable drive bays ,front IO and front power supply for easy access. Support mini-ITX motherboard and FLEX ATX power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 1U rackmount server chassis for Mini-ITX systems.
- Front panel I/O placement for easy access
- Supports: 2 x PCI OR 1 x PCIe expansion slot & 2 x 2.5" hot-swap
| Product Specifications | |
| Model Number | FS-11901 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2 x 2.5" HDD Hot Swappable Drive Bay: 2 x 2.5" HDD |
| Form Factor: | 1U |
| Motherboard Size: | Mini-ITX |
| Material | Lightweight aluminum alloy and CRS |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 10 |
| Front LED Indicator | 1 x Activity; 1 x Power |
| Front USB Port | 2 |
| Front Power Switch | 2 |
| Memory Height | Accepts standard size |
| Expansion Slot | 2 x PCI cards OR 1 x PCIe card |
| Expansion Slot Notes | Front Panel Access |
| Cooling System: | 2 x 40mm fan |
| I/O Shield | Standard I/O (Front Panel Access) |
| Supported PSU Type | Flex ATX |
| Additional | 1 x Power socket (Front Panel Access) |
| Dimensions (WxHxD) | 19.00" x 1.73" x 11.50" 482.6 mm x 43.9 mm x 292.1 mm |
