FS-12900
2U Rackmount chassis for 2 x Mini-ITX systems
2U Rackmount chassis for 2 x Mini-ITX systems

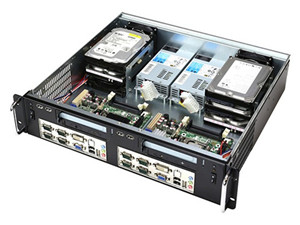

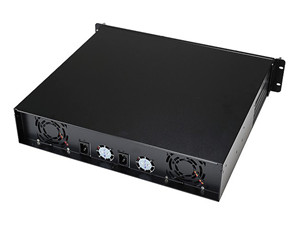

FS-12900 is a unique designs 2U chassis support dual front Mini-ITX system.Support 6 x 3.5" HDD , 2 x full height expansion slots and dual FLEX ATX power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 2U rackmount server chassis with dual mini-ITX system
- Design for easy access
- Multi I/O in the front panel
- Support 1x expansion slot for each system
| Product Specifications | |
| Model Number | FS-12900 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 3.5"HDD x 6 |
| Form Factor: | 2U |
| Motherboard Size: | Mini-ITX |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint with texture coat |
| Color | Black. Customizable colour |
| Front LED Indicator | 2 x disk activity (Orange light) ; 2 x power on (Blue light) |
| Front USB Port | 2 x 2 |
| Front Power Switch | 2 |
| Memory Height | Accept standard size |
| Expansion Slot | 2 |
| Cooling System: | 8cm fan x 2 |
| I/O Shield | 2 (not included) |
| DB9 Cutoff Hole | 2 x 2 |
| Supported PSU Type | Flex ATX |
| Dimensions (WxHxD) | 19.00" x 3.46" x 16.60" 482.6 mm x 87.9 mm x 421.6 mm |
