FS-14840
4U rackmount chassis for server boards
4U rackmount chassis for server boards

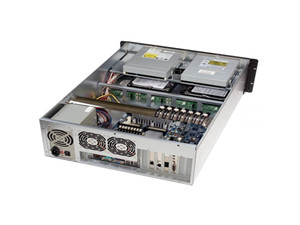

FS-14840 is a 4u rackmount chassis support up to EATX System. Featured 4 x hot swappable 3.5" HDD , 3 x front mounted 80mm fan with front accessible fan filter plus 2 x 80mm rear mounted fan for maximum cooling. Support 2 x 5.25" external device,2 x 3.5" or 2 x 2.5"HDD, and PS II ATX and Mini Redundant power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 4U rackmount server chassis for server motherboards (12" x 13")
- Supports: 7 x expansion slots, 4 x SATA2 drive trays
- Steel construction design for industrial application
| Product Specifications | |
| Model Number | FS-14840 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2 x 2.5" OR 2 x 3.5" Hot Swappable Drive Bay: 4 x 3.5" HDD Tray (Front) Optical Drive Bay: 2 x 5.25" |
| Form Factor: | 4U |
| Motherboard Size: | Server |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint textured coat |
| Color | Black |
| Weight | 40 |
| Mounting Option | Optional Sliding rails |
| Front LED Indicator | 1 x Activity; 1 x Power |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Memory Height | Accepts standard size |
| Expansion Slot | 7 |
| Cooling System: | 5 x 80mm fan |
| I/O Shield | Standard I/O |
| Supported PSU Type | PS2 ATX or Mini Redundant |
| Dimensions (WxHxD) | 19.00" x 6.82" x 24.67" 482.6 mm x 173.2 mm x 626.6 mm |
