FS-14940
4U rackmount chassis for server boards
4U rackmount chassis for server boards

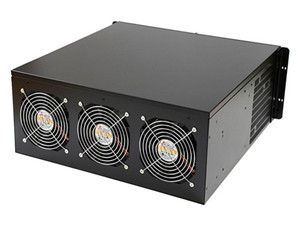

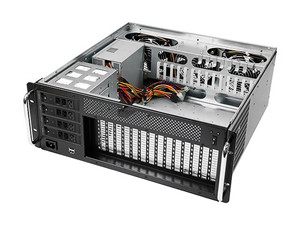

FS-14940 is a unique 4u rackmount chassis featured front face 14 slots for 14 slots Backplane or Server board , 3 x 12cm rear mounted fan for maximum cooling. Support 4 x hot swappable 3.5" HDD , and PS II ATX and Mini Redundant power supply.
**Motherboard and system components are not included, please contact our sales for system intergration inquiries**
Features
- 4U rackmount server chassis with 12"x13" server board system?
- Support 4 x 3.5" Serial ATA trays
- Multi I/O in the front
- Excellent cooling with 3 x 12cm fan
| Product Specifications | |
| Model Number | FS-14940 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Hot Swappable Drive Bay: 4 x 3.5"HDD |
| Form Factor: | 4U |
| Motherboard Size: | Server board |
| Material | Heavy duty cold-rolled steel |
| Finish | Black wet paint with texture coat |
| Color | Black. Customizable colour |
| Front LED Indicator | 2 x disk activity (Orange light) ; 2 x power on (Blue light) |
| Front USB Port | 2 |
| Front Power Switch | 1 |
| Memory Height | Accept standard size |
| Expansion Slot | 14 |
| Cooling System: | 12cm fan x 3 (at back panel) |
| Supported PSU Type | PS2 ATX or Mini Redundant |
| Dimensions (WxHxD) | 19.00" x 6.92" x 18.10" 482.6 mm x 175.8 mm x 459.7 mm |
