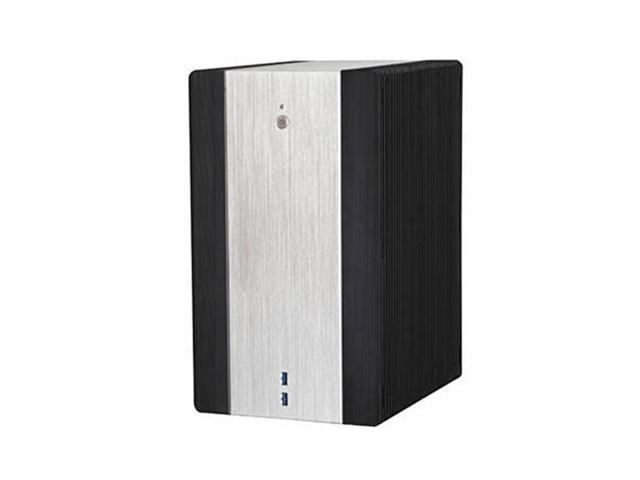

FS-BB-1390-1
Fanless Bare Server System
Features
  • Intel i7-9700K CPU (TDP 95W)
  • GIGABYTE RX570 (TDP 150W)
  • ASROCK H310CM-HDV Micro ATX Motherboard
  • ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  • Dual Heatsinks For Motherboard and expansion card
  • Silent , Dust-free & Energy - efficient Operation
  • ASRock Live Update & APP Shop
  • Support Windows 10
  • Support 450W Fanless Power Supply
Product Specifications
Model NumberFS-BB-1390-1
RoHS ComplianceYes
Standard Drive Bays Internal Drive Bay : 2.5" HDD x 2
Front PanelPower switch x 1.
USB Port x 2.
HDD LED x 1.
Power LED x 1.

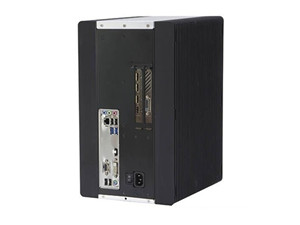

Back PanelExpansion Slot x 2
Standard I/O Shield x 1 (Not Included)
AC Socket x 1
Power Switch x 1
Motherboard Size:ATX (12" x 9.6")
Material Chassis :AL 5052 1.2T Heatsinks:AL 6063
ColorBlack/Customizable Colour
Terminal Block Positioned On The Ba
Memory Height Accept Standard Size
Expansion Slot2
Cooling System:*Thermal Pads / Copper Thermal block combination : which are positioned on the side cover to transfer heat from CPU and chipset to side cover.:: *Aluminum-made Heat Sink Side Cover : with extensive heat sink surface from side cover of the chassis, Travla fanless chassis provide excellent heat dissipation to eliminate the heat and solve thermal issues.
SurfaceBlack Wet Paint With Texture Coat
Power Solution Option 1
Internal DC Power Board450W Fanless Power Supply
Dimensions (WxHxD)10.30" x 14.09" x 8.02"
261.6 mm x 357.9 mm x 203.7 mm

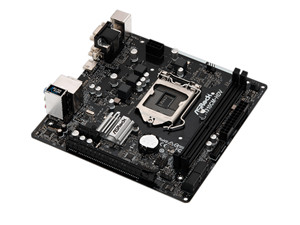

Motherboard Model NumberH310CM-HDV
Processor System
CPUIntel i7-9700K
ChipsetH310 Chipset
BIOSUEFI
Expansion Slot
Memory
TechnologyDual Channel DDR4 Memory Technology
Max.32GB
Ethernet
Interface 10/100/1000 Mb/s
Controller 1 x Realtek RTL8111H
Connector1 x RJ-45
SATA

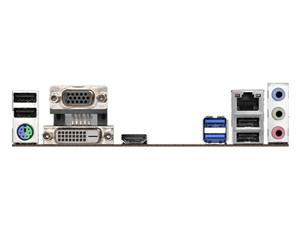

Rear I/O
Internal Connector
Watchdog Timer
Power Requirements
Environment
Graphics
