FS-BB1150-2
Fanless Bare Server System
Fanless Bare Server System
Features
- For Mini-ITX Form factor ASROCK IMB150 Motherboard with CPU TDP 20W max.
- Support 2 x Expansion slot for PCI or PCI-E.
- Simple assembling and Easy system integration.
- Silent, dust-free & energy-efficient operation.
| Product Specifications | |
| Model Number | FS-BB1150-2 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 1. |

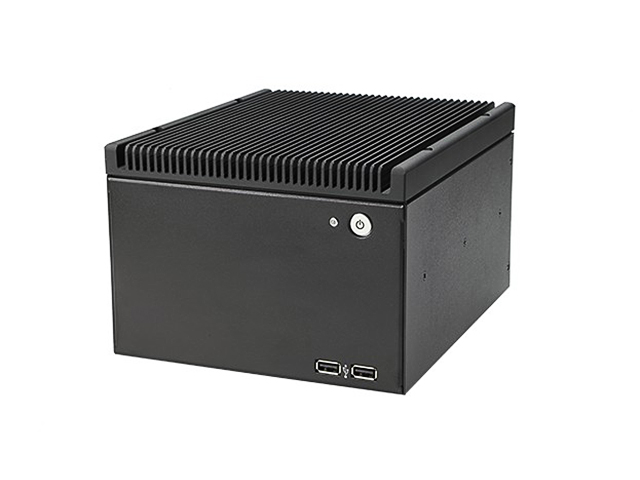

| Front Panel | Power switch x 1. USB 2.0 Port x 2. HDD LED x 1. Power LED x 1. |

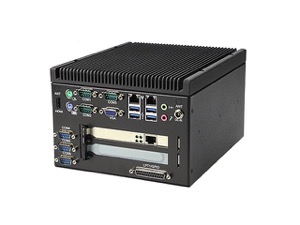

| Back Panel | COM ports x 6 . PS/2 x 2 (1 x keyboard, 1 x mouse). HDMI x 1. ANT x 2. VGA x1. Gigabit LAN x 2. USB 2.0 Port x 2. USB 3.0 Port x 2. Audio IN / OUT. LPT x 1. Expansion Slot for PCI or PCI-E x 2. |
| Material | SGCC Anodized aluminum heatsink |
| External Adapter Input | 9-19V DC In |
| Surface | Black wet paint with texture coat |
| Dimensions (WxHxD) | 7.00" x 4.90" x 8.20" 177.8 mm x 124.5 mm x 208.3 mm |

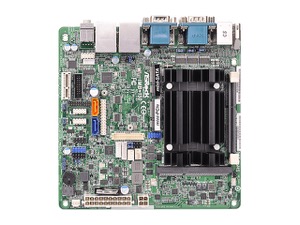

| Motherboard Model Number | IMB-150 |
| Processor System | |
| CPU | Intel® AtomTM Baytrail-M/D Processor Supports Hyper-Threading Technology |
| Core Number: | 4U |
| Max Speed: | (By CPU) |
| L3 Cache | 2MB |
| Chipset | N/A |
| BIOS | UEFI |
| Expansion Slot | |
| PCIe | 1 |
| Mini PCIe | 1 (Half Size) |
| mSATA | 1 |
| Memory | |
| Technology | Supports Dual Channel DDR3L 1333MHz SDRAM |
| Max. | 8GB |
| Socket | 2 x SO-DIMM |
| Ethernet | |
| Interface | 10/100/1000 Mbps |
| Controller | GbE LAN: 2 x Realtek RTL8111G-CG |
| Connector | 2 x RJ-45 |
| SATA | |

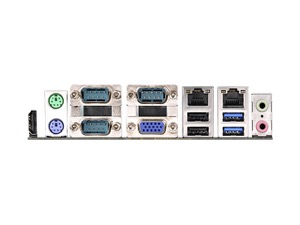

| Rear I/O | |
| VGA | 1 |
| HDMI | 1 |
| Ethernet | 2 |
| USB: | 4 (2 x USB 3.0 compliant, 2 x USB 2.0 compliant) |
| Audio | 2 (Mic-in, Line-out) |
| Serial | 3 (RS-232/422/485) |
| PS/2 | 2 (1 x keyboard and 1 x mouse) |
| Internal Connector | |
| USB | 6 (2 x USB 3.0 compliant, 4 x USB 2.0 compliant) |
| LVDS/Inverter | 1-Jan |
| VGA | 0 |
| Serial | 2 (RS-232) |
| SATA | 2 x SATA2 (3.0Gb/s) |
| m-SATA | 1 (shared) |
| Mini-PCIe | 1 |
| Parallel | 1 |
| IrDA | 0 |
| GPIO | 4 x GPI + 4 x GPO |
| SATA PWR Output Con | 1 |
| Speaker Header | 1 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec/min |
| Power Requirements | |
| Input PWR | 9-19V DC-In (4-pin ATX PWR Con) |
| Power On | AT/ATX Supported AT : Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready |
| Environment | |
| Operating Temperature | 0ºC – 60ºC |
| Graphics | |
| Controller | Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
| VRAM | Shared Memory |
| VGA | Supports max. resolution 1920 x 1200 |
| LVDS | Dual channel 24-bit, max resolution 1920 x 1200@60Hz |
| HDMI | Supports HDMI 1.3a, max resolution 1920x1200 |
| DVI | No |
| Display Port Graphics | No |
| Multi Display Graphics | Yes (Dual Display) |
