FS-BB1154
Fanless Bare Server System
Fanless Bare Server System
Features
- For Mini-ITX Form factor ASROCK IMB154 Motherboard with CPU TDP 20W max.
- Simple assembling and Easy system integration
- Silent, dust-free & energy-efficient operation.
| Product Specifications | |
| Model Number | FS-BB1154 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 1. |

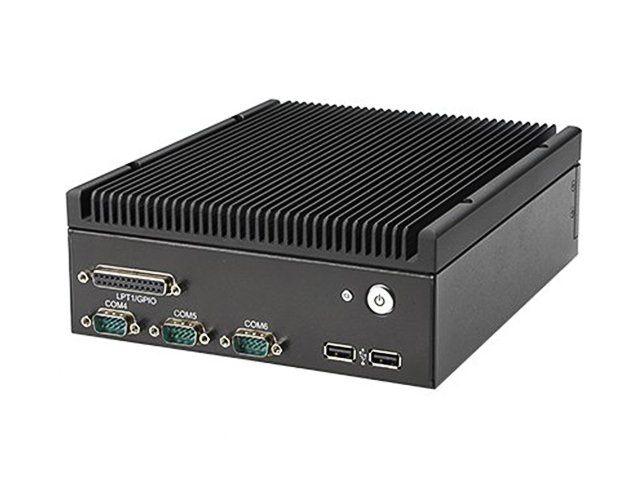

| Front Panel | Power switch x 1. USB 2.0 Port x 2. HDD LED x 1. LPT x 1. Power LED x 1. HDMI x 1. ANT x 2. COM Port x 3. |

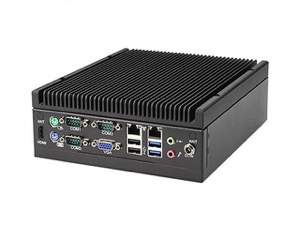

| Back Panel | COM ports x 3 . HDMI x 1. ANT x 2. PS/2 x 2 ( 1 x Keyboard , 1 x Mouse ). VGA x1. Gigabit LAN x 2. USB 3.0 Port x 4. Audio IN / OUT. |
| Material | SGCC Anodized aluminum heatsink |
| External Adapter Input | 12V or 19-24V DC In |
| Surface | Black wet paint with texture coat |
| Dimensions (WxHxD) | 7.00" x 2.70" x 8.20" 177.8 mm x 68.6 mm x 208.3 mm |

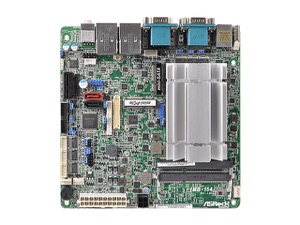

| Motherboard Model Number | IMB-154 |
| Processor System | |
| CPU | Intel® Pentium/Celeron Braswell SoC Supports Hyper-Threading Technology Default N3150 Quad core 6W processor |
| Core Number: | (By CPU, Max 4)U |
| Max Speed: | (By CPU) |
| L2 Cache | (By CPU) |
| Chipset | (By CPU) |
| BIOS | UEFI |
| Expansion Slot | |
| PCIe | 1 x PCIe x1 slot |
| Mini PCIe | 1 (full/half size,supports PCIe x1 and USB device) |
| mSATA | 1 (full size,supports SATA and USB device) |
| Memory | |
| Technology | Dual Channel DDR3L 1333/1600 MHz SDRAM |
| Max. | 8GB |
| Socket | 2 x SO-DIMM |
| Ethernet | |
| Interface | 10/100/1000 Mbps |
| Controller | 2 x Realtek RTL8111G |
| Connector | 2 x RJ-45 |
| SATA | |

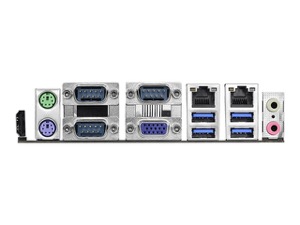

| Rear I/O | |
| VGA | 1 |
| HDMI | 1 |
| Ethernet | 2 |
| USB: | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| Serial | 3 x RS-232 (COM1/COM2 support RS-422/485) |
| PS/2 | PS2 x2, KB & MS stack |
| Internal Connector | |
| USB | 4 ( 2*2.54 pitch header USB 2.0 compliant) |
| LVDS/Inverter | 1-Jan |
| VGA | 0 |
| Serial | 3* 2.0 pitch header RS-232 |
| SATA | 2 x SATA3 (6.0Gb/s) |
| m-SATA | 1(Share with SATA2) |
| Mini-PCIe | 1 |
| Parallel | 1 (Co-lay with 8in/8out DIO) |
| IrDA | 0 |
| GPIO | 8 x GPI + 8 x GPO |
| SATA PWR Output Con | 1 |
| Speaker Header | 1 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 segments, 0,1,2…255sec/min |
| Power Requirements | |
| Input PWR | 12V or 19~24V DC in (4-pin ATX PWR Con) / ATX |
| Power On | AT/ATX Supported AT : Directly PWR on as Power input ready ATX: Press Button to PWR on after Power input ready |
| Environment | |
| Operating Temperature | 0ºC – 60ºC |
| Graphics | |
| Controller | Intel® Gen8 Intel Graphics DX 11*, OGL3.2 |
| VRAM | Shared Memory |
| VGA | Supports max. resolution 1920 x 1200 |
| LVDS | Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz |
| HDMI | Supports HDMI 1.4a, max resolution 1920x1200 |
| DVI | No |
| Display Port Graphics | No |
| Multi Display Graphics | Yes (Triple Display) |
