Product Specifications | |
Model Number | FS-BB1156-2 |
RoHS Compliance | Yes |
Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 1. |

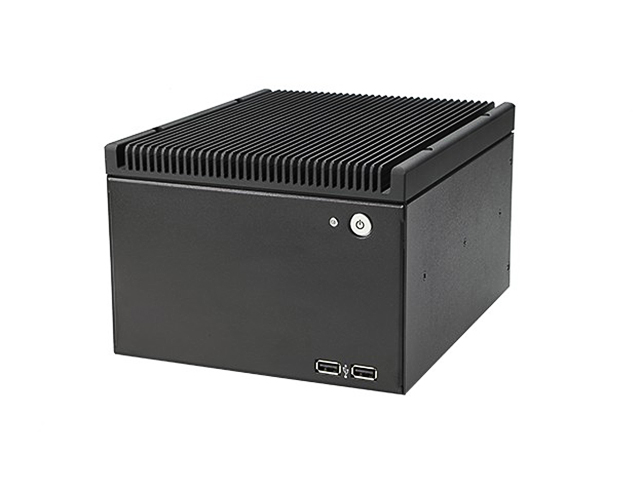

Front Panel | power switch x 1. Power LED x 1. HDD LED x 1. USB 2.0 Port x 2. |

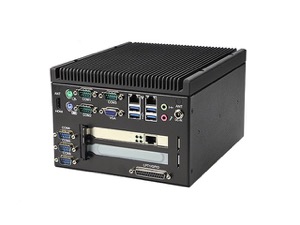

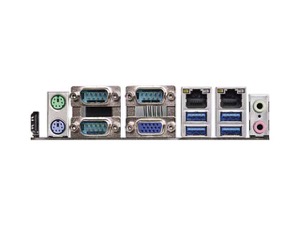

Back Panel | COM Ports x 6 . PS/2 x 2 (1 x Keyboard , 1 x Mouse). HDMI x 1. ANT x 2. VGA x1. Gigabit LAN x 2. Expansion slot for PCI or PCI-E x 2. Audio IN / OUT. LPT x 1. USB 3.0 Port x 4. |
Material | SGCC Anodized aluminum heatsink |
External Adapter Input | 12V or 19 -24V DC In |
Surface | Black wet paint with texture coat |
Dimensions (WxHxD) | 7.00" x 4.90" x 8.20" 177.8 mm x 124.5 mm x 208.3 mm |
Motherboard Model Number | IMB-156 |
Processor System | |
CPU | BGA1296 for Intel® Apollo Lake SoC |
Core Number: | (By CPU, Max 4)U |
Max Speed: | (By CPU) |
L2 Cache | (By CPU) |
Chipset | N/A |
BIOS | UEFI |
Expansion Slot | |
PCIe | 1 x PCIe x1 slot |
Mini PCIe | 1 (full/half size) with PCIe x1 and USB 2.0 (Shared) |
M.2 | 1 x KEY M (2260/2280) with SATA III signal for SSD 1 x KEY E (2230) with PCIe x1 and USB 2.0 (Shared) for Wireless |
Memory | |
Technology | Dual Channel DDR3L 1867MHz |
Max. | 16GB |
Socket | 2 x SO-DIMM |
Ethernet | |
Interface | 10/100/1000 Mbps |
Controller | 2 x Realtek RTL8111G |
Connector | 2 x RJ45 |
SATA | |
Rear I/O | |
VGA | 1 |
HDMI | 0 |
DVI-I/D | 1 |
Ethernet | 2 |
USB: | 4 x USB 3.0 |
Audio | 2 (Mic-in, Line-out) |
Serial | 3 x COM (Supports RS-232/422/485) |
PS/2 | 2 |
Internal Connector | |
USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
LVDS/Inverter | 1-Jan |
eDP | 1 (BOM Option) |
VGA | 1 |
Serial | 3 x COM (Supports RS-232 only) |
SATA | 1 |
m-SATA | 1 |
Mini-PCIe | 1 (shared with GPIO) |
Parallel | 0 |
IrDA | 0 |
GPIO | 8 x GPI + 8 x GPO (shared with LPT header) |
SATA PWR Output Con | 1 |
Speaker Header | 1 |
Watchdog Timer | |
Output | From Super I/O to drag RESETCON# |
Interval | 256 segments, 0,1,2…255sec/min |
Power Requirements | |
Input PWR | +12V or +19V~+24V DC-In (4-pin ATX PWR Con / ATX) |
Power On | AT/ATX Supported AT : Directly PWR on as power input ready ATX : Press button to PWR on after power input ready |
Environment | |
Operating Temperature | 0ºC – 60ºC |
Graphics | |
Controller | Intel® HD Graphics |
VRAM | Shared Memory |
VGA | Supports max resolution up to 1920 x 1200 |
LVDS | Supports max resolution up to 1920 x 1200@60Hz |
eDP | Supports max resolution up to 4096 x 2160@60Hz |
HDMI | Supports max resolution up to 4096 x 2160@24Hz |
DVI | No |
Display Port Graphics | No |
Multi Display Graphics | Yes (Triple Display) |
