FS-BB1222-2

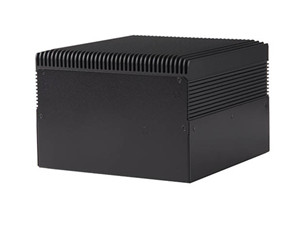

Fanless chassis for Mini-ITX
Fanless chassis for Mini-ITX
Features
- For Mini-ITX ASROCK IMB-194-D M/B With CPU TDP 35W Max.
- Simple Assembling and Easy System Integration.
- Support Wall/ Vesa Mount Bracket.(Optional)
- Silent and Dust-free
| Product Specifications | |
| Model Number | FS-BB1222-2 |
| RoHS Compliance | Yes |
| Standard Drive Bays |
Internal Drive Bay : 2.5" HDD x 1 |

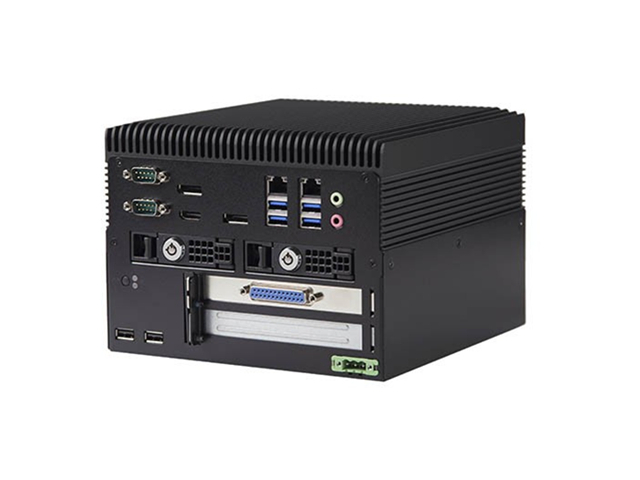

| Front Panel | Power switch x 1. USB Port x 2. HDD LED x 1. Power LED x 1. LAN x 1. Audio (Mic-in, Line-out) x 2 Display x 2 HDMI x 1 COM Port x 2. Terminal Block x 1 |
| Back Panel | ANT x 2 |
| Motherboard Size: | Mini-ITX |
| Material | SGCC |
| Color | Black/Customizable Colour |
| Memory Height | Accept Standard Size |
| Expansion Slot | 2 |
| Cooling System: | *Thermal pads / Copper/ Aluminum Thermal Block Combination :: *Aluminum-made Heat Sink Top Cover |
| Surface | Black Wet Paint With Texture Coat |
| Power Solution Option 1 | |
| Internal DC Power Board | C7 (80W) DC Power Board |
| External AC Adapter | 60W: Input (AC 100~240V); Output (DC 12V@ 5A) |
| Power Solution Option 2 | |
| Internal DC Power Board | C7 (80W) DC Power Board |
| External AC Adapter | 80W: Input (AC 100~240V); Output (DC 12V@ 6.67A) |
| Dimensions (WxHxD) | 7.51" x 5.64" x 7.43" 190.8 mm x 143.3 mm x 188.7 mm |

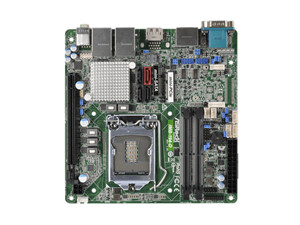

| Motherboard Model Number | IMB-194-D |
| Processor System | |
| CPU | Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S) |
| Core Number: | By CPU, Max 4U |
| Max Speed: | By CPU |
| L2 Cache | By CPU |
| Chipset | Intel® Q170 |
| BIOS | UEFI |
| Expansion Slot | |
| PCIe | 1 x PCIe x16 slot |
| Mini PCIe | 1 (half/full size, supports PCIe x1 and USB device) |
| mSATA | 1 (full size, shared SATA and USB device) |
| Memory | |
| Technology | Dual Channel DDR4 2133 MHz |
| Max. | 32GB |
| Socket | 2 x SO-DIMM |
| Ethernet | |
| Interface | 10/100/1000 Mbps |
| Controller | 1 x Intel® I219LM, 1 x Intel® I210 |
| Connector | 2 x RJ45 |
| SATA | |

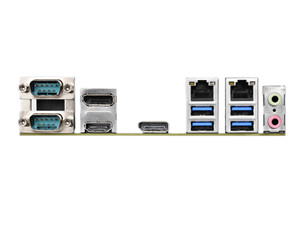

| Rear I/O | |
| HDMI | 1 |
| Ethernet | 2 |
| USB: | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| Serial | 2 x COM (RS-232/422/485) |
| PS/2 | 2 |
| Internal Connector | |
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
| LVDS/Inverter | 0/0 |
| eDP | 1 |
| VGA | 0 |
| Serial | 3 x COM (Supports RS-232 only) |
| SATA | 4 |
| m-SATA | 1 |
| Mini-PCIe | 1 |
| Parallel | 0 |
| IrDA | 0 |
| GPIO | 4 x GPI + 4 x GPO |
| SATA PWR Output Con | 0 |
| Speaker Header | 1 |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec/min |
| Power Requirements | |
| Input PWR | ATX PWR Con (24+4-pin) |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temperature | 0ºC ~ 60ºC |
| Graphics | |
| Controller | Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4 |
| VRAM | Shared Memory |
| VGA | Supports max resolution up to 1920x1200 |
| LVDS | Supports max resolution up to 1920x1200@60Hz |
| eDP | Supports max resolution up to 4096x2160@60Hz |
| HDMI | Supports max resolution up to 4096x2160@30Hz |
| DVI | NO |
| Display Port Graphics | Supports max resolution up to 4096x2160@60Hz |
| Multi Display Graphics | Yes (Triple Display) |
