C Storm 6G Trayless
Simple List View
Detailed List View
Gallery View| Model # | Image | Form Factor |
5.25" Drive |
3.5" Drive |
Hotswap 3.5" |
Slim Optical |
Slim FDD |
Expansion slots |
Mainboard Size(inch) | Depth |
| C-140SS |  | 1U | 4 | 0 | 0 | 1 | 12 x 9.6 (ATX,mATX) | 15.15 | ||
| C-280SS |  | 2U | 8 | 1 | 0 | 7 (Low profile) | 12 x 9.6 (ATX, microATX) | 23.00 | ||
| C-420SS |  | 4U | 20 | 0 | 0 | 7 | 12 x 9.6 (ATX, microATX) | 23.00 | ||

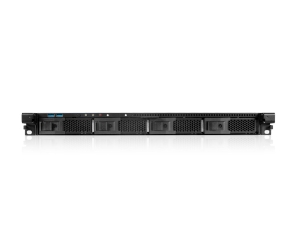

C-140SS
Motherboard Size:
• 12 x 9.6 (ATX,mATX)
Build-to-Order - 1U 4-Bay Trayless Storage Server Rackmount Chassis
Drives:
• Hotswap 3.5" : 4
• Hotswap 3.5" : 4
Motherboard Size:
• 12 x 9.6 (ATX,mATX)
Dimension:
• 19.00 x 1.75 x 15.15 inches
• 482.6 x 44.5 x 384.8 mm
• 19.00 x 1.75 x 15.15 inches
• 482.6 x 44.5 x 384.8 mm

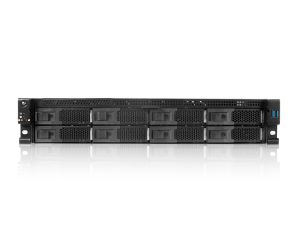

C-280SS
Motherboard Size:
• 12 x 9.6 (ATX, microATX)
Build-to-Order - 2U 8-Bay Trayless Storage Server Rackmount Chassis
Drives:
• 2.5" Drive(Int.) : 1
• Hotswap 3.5" : 8
• Slim Optical : 1
• 2.5" Drive(Int.) : 1
• Hotswap 3.5" : 8
• Slim Optical : 1
Motherboard Size:
• 12 x 9.6 (ATX, microATX)
Dimension:
• 19.00 x 3.50 x 23.00 inches
• 482.6 x 88.9 x 584.2 mm
• 19.00 x 3.50 x 23.00 inches
• 482.6 x 88.9 x 584.2 mm
C-420SS
Motherboard Size:
• 12 x 9.6 (ATX, microATX)
Build-to-Order - 4U 20-Bay Trayless Storage Server Rackmount Chassis
Drives:
• 2.5" Drive(Int.) : 1
• Hotswap 3.5" : 20
• 2.5" Drive(Int.) : 1
• Hotswap 3.5" : 20
Motherboard Size:
• 12 x 9.6 (ATX, microATX)
Dimension:
• 19.00 x 7.00 x 23.00 inches
• 482.6 x 177.8 x 584.2 mm
• 19.00 x 7.00 x 23.00 inches
• 482.6 x 177.8 x 584.2 mm
