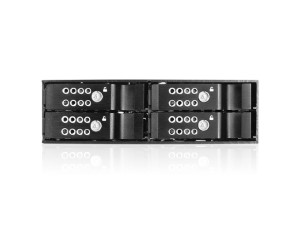

Industrial Chassis | iStarUSA Products | BPU-124DE-HD - Build-to-Order - 5.25" to 4x 2.5" SATA SAS 12 Gb/s HD miniSAS Hot-swap Rack

BPU-124DE-HD
Build-to-Order - 5.25" to 4x 2.5" SATA SAS 12 Gb/s HD miniSAS Hot-swap Rack

All Aluminum Material Solid Construction
Built-In 2 x 40mm Cooling Fans
LEDs for Power & HDD Activity
Supports 4 x 2.5" SATA and SAS HDDs
Supports HDD Thickness from 7 to 15 mm
12 Gb/s HD miniSAS Backplane (SFF-8643)

Product Introduction
High availability storage in compact design, BPU-124DE-HD 12 Gbps HD miniSAS enclosure adds extra storage and hot-swap capability to satisfy any application needs. The BPU-124DE-HD is constructed of aluminum material that provides best heat dissipation required for high performance 12Gbps 2.5" SATA and SAS drives. The housing is designed with excellent front to back airflow cooling with two 40mm fans. BPU-124DE-HD is an ideal solution for 2.5" HDD/SSD RAID and JBOD applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
Compatible Chassis		Product Reviews

Model Number	BPU-124DE-HD
RoHS Compliance	Yes
Standard Drive Bays	Hotswap 2.5": 4 5.25" Drives: 1
Hotswap HDD Type:	2.5" SAS I/II & SATA I/II/III
Indicators	Power On: solid blue. HDD Access: purple blinking. Fan Failure: slow red blinking. Overheating: fast red blinking
Security	Key Lock
Material of Main Chassis	Aluminum
Color of Main Chassis	Black
Cooling Fan	2x40mm
Dimensions (WxHxD)	5.75" x 1.65" x 8.07" 146.0 mm x 41.9 mm x 205.0 mm
Notes	- HTS code: 8573.30.5100. ECCN: EAR99

Download

Data Sheet (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

Model #

Description

Compatible Power Supplies

Model #

Description

Required Bracket(s)

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.

Compatible Chassis

	Model #	Description
	DN-105-T	1.5U Compact 5.25" Bay microATX Chassis

	S-35EX	Compact Stylish 3x 5.25" Bay mini-ITX Tower

	DN-200	2U 5.25" 2-Bay Compact microATX Chassis

	DN-300	3U 5.25" 3-Bay Compact microATX Chassis

	DN-400	4U 5.25" 4-Bay Compact ATX Chassis

	DN-105T-15FX1	1.5U Compact 5.25" Bay microATX Chassis with 150W Power Supply

	DN-105T-18FX1	1.5U Compact 5.25" Bay microATX Chassis with 180W Power Supply

	DN-105T-22FX8	1.5U Compact 5.25" Bay microATX Chassis with 220W Power Supply

	DN-105T-30FX8	1.5U Compact 5.25" Bay microATX Chassis with 300W Power Supply

	DN-200-35P3	2U 5.25" 2-Bay Compact microATX Chassis with 350W Power Supply

	DN-200-50P8B	2U 5.25" 2-Bay Compact microATX Chassis with 500W Power Supply

	DN-200-70P8B	2U 5.25" 2-Bay Compact microATX Chassis with 700W Power Supply

	DN-200-50R8PD8	2U 5.25" 2-Bay Compact microATX Chassis with 500W Redundant Power Supply

	DN-200-40R8P	2U 5.25" 2-Bay Compact microATX Chassis with 400W Redundant Power Supply

	DN-300-35P3	3U 5.25" 3-Bay Compact microATX Chassis with 350W Power Supply

	DN-300-50P8	3U 5.25" 3-Bay Compact microATX Chassis with 500W Power Supply

	DN-300-70P8B	3U 5.25" 3-Bay Compact microATX Chassis with 700W Power Supply

	DN-300-50R8PD8	3U 5.25" 3-Bay Compact microATX Chassis with 500W Redundant Power Supply

	DN-300-40R8P	3U 5.25" 3-Bay Compact microATX Chassis with 400W Redundant Power Supply

	DN-300-55R8P	3U 5.25" 3-Bay Compact microATX Chassis with 550W Redundant Power Supply

	DN-400-50P8	4U 5.25" 4-Bay Compact ATX Chassis with 500W Power Supply

	DN-400-70P8B	4U 5.25" 4-Bay Compact ATX Chassis with 700W Power Supply

	DN-400-50R8PD8	4U 5.25" 4-Bay Compact ATX Chassis with 500W Redundant Power Supply

	DN-400-40R8P	4U 5.25" 4-Bay Compact ATX Chassis with 400W Redundant Power Supply

	DN-400-55R8P	4U 5.25" 4-Bay Compact ATX Chassis with 550W Redundant Power Supply

	D-400	4U Compact Stylish Rackmount Chassis
