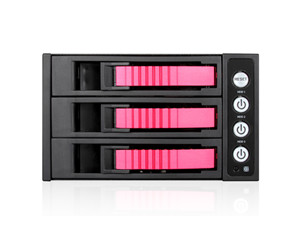

Industrial Chassis | iStarUSA Products | BPU-230HD-RED - 2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack

BPU-230HD-RED
2x 5.25" to 3x 3.5" 2.5" 12Gb/s HDD SSD Hot-swap Rack

Stylish aluminum color handle and heat-sink body
Support Hot-Swap & RAID Configuration (need an additional RAID controller)
Aluminum Design with Conductive Dissipation Grooves
Power, fan and high temperature LED indicators
High Performance Transfer Rate up to 12Gb/s
Supports Both 2.5" and 3.5" SAS I/II/III & SATA I/II/III HDD/SSD
Equipped with Fan Speed Control Switch

Product Introduction
Create more space for hard drive with hot-swap capability, BPU-230HD series supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides light weight but strong stability and extra 70mm fan keep hard drive at maximum performance.
High density multi-disk storage backplane that allows multiple 3x3.5" SAS/SATA hard drives to be mounted into 2 standard 5.25". Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD),Security System,SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
	Product Reviews

Model Number	BPU-230HD-RED
RoHS Compliance	Yes
Standard Drive Bays	Hotswap 3.5": 3 5.25" Drives: 2
Hotswap HDD Type:	2.5" & 3.5" SAS I/II/III & SATA I/II/III
Indicators	Power, HDD, fan, and high temperature
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Aluminum Design with Conductive Dissipation Grooves
Color of Front Bezel	Black/ Blue/ Red/ Silver
Color of Main Chassis	Black
Package Content	SATA Cable Included (3pcs)
Cooling Fan	1x70mm
Ordering Information (Part Number)	Black Tray:BPU-230HD-BLACK Blue Tray:BPU-230HD-BLUE Red Tray:BPU-230HD-RED Silver Tray:BPU-230HD-SILVER Lockable Tray:BPU-230HD-BPL
Dimensions (WxHxD)	5.75" x 3.39" x 8.22" 146.0 mm x 86.1 mm x 208.8 mm

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-HSTRAY	BPU Series and T-7M1-SATA Tray with Plastic Lockable Handle
	BPU-HSTRAY-BLACK	BPU Series and T-7M1-SATA Tray with Aluminum Handle BLACK
	BPU-HSTRAY-BLUE	BPU Series and T-7M1-SATA Tray with Aluminum Handle BLUE
	BPU-HSTRAY-RED	BPU Series and T-7M1-SATA Tray with Aluminum Handle RED
	BPU-HSTRAY-SILVER	BPU Series and T-7M1-SATA Tray with Aluminum Handle SILVER
	BPU-HSTRAY-35TL	Build-to-Order - BPU Series and T-7M1-SATA Tool-Less Screw-less 3.5" HDD Tray
	BPU-HSTRAY-25TL	Build-to-Order - BPU Series and T-7M1-SATA Tool-Less Screw-less 2.5" HDD Tray
