Industrial Chassis | iStarUSA Products | BPU-340SATA-KL - 3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock

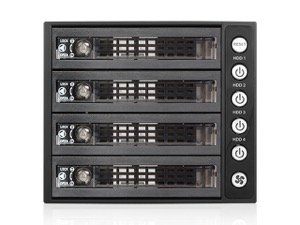

BPU-340SATA-KL
3x 5.25" to 4x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock

Stylish aluminum heat-sink body
Support Hot-Swap & RAID Configuration (need an additional RAID controller)
Aluminum Design with Conductive Dissipation Grooves
Power, fan and high temperature LED indicators
High Performance Transfer Rate up to 6.0 Gb/s
Support Both 2.5" and 3.5" SAS I/II & SATA I/II/III HDDs
Equipped with Fan Speed Control Switch
12TB Hard Drives Compatible
Triangle Key Lock HDD Tray

Product Introduction
High level Raid and high availability storage in compact design, BPU-340SATA series adds extra storage and hot-swap capability to satisfy any application needs. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.
High density multi-disk storage backplane that allows multiple four 3.5" SAS/SATA hard drives to be mounted into three standard 5.25" drive bays. BPU-340SATA supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. Aluminum construction provides best heat dissipation required for high performance SAS/SATA drives, is designed with excellent front to back vent airflow. Applications: Digital Audio Editing,Video Editing (SD or HD), Security System, SOHO SMEs With Limit HDD Tray and Data Protection or Disk-to-Disk Backup.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
Compatible Chassis		Product Reviews

Model Number	BPU-340SATA-KL
RoHS Compliance	Yes
Standard Drive Bays	Hotswap 3.5": 4 5.25" Drives: 3
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD, fan, and high temperature
Security	Key Lock
Material of Handle	Plastic
Material of Main Chassis	Aluminum Design with Conductive Dissipation Grooves
Color of Main Chassis	Black
Package Content	SATA Cable Included (4pcs)
Cooling Fan	1x80mm
Dimensions (WxHxD)	5.75" x 4.96" x 8.03" 146.0 mm x 126.0 mm x 204.0 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

User's Manual (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-HSTRAY	BPU Series and T-7M1-SATA Tray with Plastic Lockable Handle
	BPU-HSTRAY-BLACK	BPU Series and T-7M1-SATA Tray with Aluminum Handle BLACK
	BPU-HSTRAY-BLUE	BPU Series and T-7M1-SATA Tray with Aluminum Handle BLUE
	BPU-HSTRAY-RED	BPU Series and T-7M1-SATA Tray with Aluminum Handle RED
	BPU-HSTRAY-SILVER	BPU Series and T-7M1-SATA Tray with Aluminum Handle SILVER
	BPU-HSTRAY-35TL	Build-to-Order - BPU Series and T-7M1-SATA Tool-Less Screw-less 3.5" HDD Tray
	BPU-HSTRAY-25TL	Build-to-Order - BPU Series and T-7M1-SATA Tool-Less Screw-less 2.5" HDD Tray

Compatible Power Supplies

Model #

Description

Required Bracket(s)

Compatible Motherboards

Model #	Motherboard Size	Company Name
There are no compatibility motherboard for this model.

Compatible Chassis

	Model #	Description
	DN-300	3U 5.25" 3-Bay Compact microATX Chassis

	DN-400	4U 5.25" 4-Bay Compact ATX Chassis

	DN-300-35P3	3U 5.25" 3-Bay Compact microATX Chassis with 350W Power Supply

	DN-300-50P8	3U 5.25" 3-Bay Compact microATX Chassis with 500W Power Supply

	DN-300-70P8B	3U 5.25" 3-Bay Compact microATX Chassis with 700W Power Supply

	DN-300-50R8PD8	3U 5.25" 3-Bay Compact microATX Chassis with 500W Redundant Power Supply

	DN-300-40R8P	3U 5.25" 3-Bay Compact microATX Chassis with 400W Redundant Power Supply

	DN-300-55R8P	3U 5.25" 3-Bay Compact microATX Chassis with 550W Redundant Power Supply

	DN-400-50P8	4U 5.25" 4-Bay Compact ATX Chassis with 500W Power Supply

	DN-400-70P8B	4U 5.25" 4-Bay Compact ATX Chassis with 700W Power Supply

	DN-400-50R8PD8	4U 5.25" 4-Bay Compact ATX Chassis with 500W Redundant Power Supply

	DN-400-40R8P	4U 5.25" 4-Bay Compact ATX Chassis with 400W Redundant Power Supply

	DN-400-55R8P	4U 5.25" 4-Bay Compact ATX Chassis with 550W Redundant Power Supply
