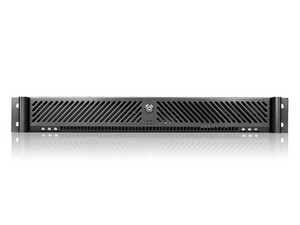

D-107V2
1.3U Industrial Leading Rackmount Chassis
  • Compatible with standard I/O shield
  • Better cooling with 50mmx4 fans
  • Power and HDD LED
  • Power and alarm reset switch
  • Supports Front Access USB2.0 x2
  • Performance front cold air intake tunnel
  • Signature Aluminum Front Panel with key lock
Product Introduction
The industrial leading 1.3U rackmount chassis is the D-107V2. Its unique thermal cooling solution including the front air intake tunnel and 4x50mm cooling fan can cool the system down while it runs at optimal level. The 1.3U form factor enables standard I/O backplane for maximum compatibility of most motherboards. One 5.25" and one 3.5" front bay drives, three internal 3.5" hard drive slots and total storage capacity up to 2 terabytes provide the server or cluster system supreme flexibility and performance.

Model NumberD-107V2
RoHS ComplianceYes
Form factor1.3 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 3
5.25" Drives: 1
IndicatorsPower, HDD, Fan, Network
SwitchesPower, Reset
Expansion Slots1
SecurityKey Lock
Material of Front BezelAluminum
Material of HandleSECC Zinc-Coated Steel
Material of Main ChassisSteel 1.0mm
Color of Front BezelBlack
Color of Main Chassisblack
Front Connector2x USB 2.0
Air FilterRemoval, Washable
Motherboard Size12 x 9.6 (ATX, microATX)
Cooling Fan4x50mm
Dimensions (WxHxD)21.25" x 2.30" x 19.00"
539.8 mm x 58.4 mm x 482.6 mm
Notes- for PCI riser, use DD-611-C5 (search for DD-611-CX).
- for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
BPU-2535-SIBuild-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-HUB-SAUF3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
RP-READER35Build-to-Order - All-in-one USB 2.0 Card Reader
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-7-SARugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
DD-REARMOUNT-2UBuild-to-Order - 2U Rear Bracket for Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-2535DE-SA3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-G35-SSIndustrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-35K25-SABuild-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
IS-1U35PD8Build-to-Order - 1U 350W 80 Plus High Efficiency Power SupplyBrackets Not Required
IS-1U40PD81U 400W 80 Plus High Efficiency Power SupplyBrackets Not Required
IS-1U46PD8Build-to-Order - 1U 460W 80 Plus High Efficiency Power SupplyBrackets Not Required
IS-1U50PD81U 500W 80 Plus High Efficiency Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-C(4L)ATXASUS
P8B-E(4L)ATXASUS
P8B-XATXASUS
P6T WS ProfessionalATXASUS
P6X58-E WSATXASUS
P8B WSATXASUS
P8C WSATXASUS
P8P67 WS REVOLUTIONATXASUS
P8Z77 WSATXASUS
Z9PA-U8ATXASUS
P8B-MXMicro-ATXASUS
C216 WSATXASRock
E3C204ATXASRock
E3C204-4LATXASRock
E3C204-V+ATXASRock
E3C204-V4LATXASRock
H77WS-DLATXASRock
Z77 WSATXASRock
AD2550R/U3S3Mini ITXASRock
S5512ATXTYAN
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
GA-6PXSV4ATXGIGABYTE
GA-6PXSV1ATXGIGABYTE
GA-6PXSV2ATXGIGABYTE
GA-6PXSV3ATXGIGABYTE

Chassis Combo

Model #HDD Tray Front Bezel
Color		Hotswap
3.5" Bay		 Hotswap
2.5" Bay		Ext
5.25"		 Ext
3.5"		HDD Type
D107V2-25M2TraylessBlack02102.5" SATA I/II
D107V2-DE1BKTraylessBlack10013.5" SAS I/II & SATA I/II/III
D107V2-DE1SLTraylessBlack10013.5" SAS I/II & SATA I/II/III
D107V2-DE1BLTraylessBlack10013.5" SAS I/II & SATA I/II/III
D107V2-DE1RDTraylessBlack10013.5" SAS I/II & SATA I/II/III
D107V2-B126TrayBlack06012.5" SATA I/II/III
D107V2-B124TrayBlack04012.5" SAS I/II & SATA I/II/III
D107V2-M1BKTrayBlack10013.5" SAS I/II & SATA I/II/III
D107V2-M1SLTrayBlack10013.5" SAS I/II & SATA I/II/III
D107V2-M1BLTrayBlack10013.5" SAS I/II & SATA I/II/III
D107V2-M1RDTrayBlack10013.5" SAS I/II & SATA I/II/III
D107V2-M1PLTrayBlack10013.5" SAS I/II & SATA I/II/III
D107V2-T7TrayBlack10013.5" SAS I/II & SATA I/II/III
D107V2-T5FTraylessBlack10013.5" SAS I/II & SATA I/II/III
