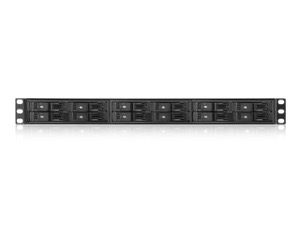

D-135-BN12SA
Build-to-Order - 1U 12x 2.5" Bays Trayless ATX Chassis

Supports full-size ATX motherboards
12 Trayless and hotswappable 2.5" bays for HDD/SSD quick swap
3x 40mm cooling fans
Supports 6.0 Gb/s hard drives
Rear-mount brackets included
Compatible with 1U redundant power supply

Product Introduction
The D-135-BN12SA chassis is designed with 12x 2.5" trayless bay for any RAID configuration and also with metal key locks help secure your hard drives and prevent unauthorized access. Also, the D-135-BN12SA chassis supports an 1U redundant power supplies to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-135-BN12SA
RoHS Compliance	Yes
Form factor	1 U
Standard Drive Bays	2.5" Drive (internal): 1 Hotswap 2.5": 12
Hotswap HDD Type:	2.5" SATA I/II/III
Switches	Power
Supported PSU Type	1U
Expansion Slots	1
Material of Main Chassis	Steel
Color of Main Chassis	Black
Motherboard Size	12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan	3x40mm
Dimensions (WxHxD)	17.44" x 1.73" x 23.62" 443.0 mm x 43.9 mm x 599.9 mm
Notes	- not compatible with sliding rails

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

Model #

Description

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	IS-1U35PD8	Build-to-Order - 1U 350W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U40PD8	1U 400W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U46PD8	Build-to-Order - 1U 460W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U50PD8	1U 500W 80 Plus High Efficiency Power Supply	Brackets Not Required
	TC-1U50PD8	1U 500W High Efficiency Switching Power Supply	Brackets Not Required
