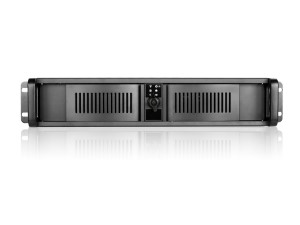

Industrial Chassis | iStarUSA Products | D-200L-80S2UP8 - 2U High Performance Rackmount Chassis with 800W Redundant Power Supply

D-200L-80S2UP8
2U High Performance Rackmount Chassis with 800W Redundant Power Supply

Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
Front Access USB2.0 x2
80mm x3 cooling fan
Support Extend-ATX Motherboard
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
800W Redundant Power Supply

Product Introduction
The 2U compact industrial rackmount chassis D Storm D-200L. The full size I/O supports all ATX motherboard. Combine hot-swappable cage for RAID configuration, and total up to 4 drive storage capacity. D-200L support 3 add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. The 800W redundant power supply ensures total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards
Riser Card Info

Model Number	D-200L-80S2UP8
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	3.5" Drives: 2 5.25" Drives: 2
Indicators	Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches	Power, Reset
Supported PSU Type	2U
Expansion Slots	3
Security	Front Bezel Key Lock
Material of Front Bezel	Aluminum alloy
Material of Handle	SECC Zinc-Coated Steel
Material of Main Chassis	1.2mm SECC Zinc-Coated Steel (Japan Made)
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Air Filter	Removable & Washable
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	3x80mm
Ordering Information (Part Number)	Black Bezel:D-200L-80S2UP8 Blue Bezel:D-200L-BL-80S2UP8 Red Bezel:D-200L-RD-80S2UP8 Silver Bezel:D-200L-SL-80S2UP8
Dimensions (WxHxD)	19.00" x 3.50" x 27.90" 482.6 mm x 88.9 mm x 708.7 mm
Notes	- low profile backplate option, P/N: DD-200-LP-PCI.

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-24-D2	24" Sliding Rail Kit for D Storm 2U Chassis
	TC-RAIL-26-D2	26" Sliding Rail Kit for D Storm 2U Chassis
	DD-200-LP-PCI	D Storm 2U Low Profile Backplate
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	DD-200-DBLUE	D-200 BLUE DOOR
	DD-200-DRED	D-200 RED DOOR
	DD-200-DSILVER	D-200 SILVER DOOR
	DD-200-SE-BLACK	2U Black Bezel for SE series
	DD-200-SE-BLUE	2U Blue Bezel for SE series
	DD-200-SE-RED	2U Red Bezel for SE series
	DD-200-SE-SILVER	2U Silver Bezel for SE series
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-350R2UP	Build-to-Order - 350W 2U Redundant Power Supply	DD-200-R2U-BAR (1) DD-200-RISERBAR (1)
	IS-400R2UP	Build-to-Order - 400W 2U Redundant Power Supply	DD-200-R2U-BAR (1) DD-200-RISERBAR (1)
	IS-500S2UP	Build-to-Order - 500W 2U Redundant Power Supply	DD-200-R2U-BAR (1) DD-200-RISERBAR (1)
Single
	IS-1U40PD8	1U 400W 80 Plus High Efficiency Power Supply	BRT-0102-1 (1)
	IS-2U46PD8	2U 460W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U50PD8	1U 500W 80 Plus High Efficiency Power Supply	BRT-0102-1 (1)
	IS-2U50PD8	Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply	Brackets Not Required
	TC-2U50PD8	EOL - 500W 2U High Efficiency Switching Power Supply	BRT-0303-1 (1)
	TC-2U60PD8	EOL - 600W 2U High Efficiency Switching Power Supply	BRT-0303-1 (1)
