Industrial Chassis | iStarUSA Products | D-213-MATX-B126SA - Build to Order - 2U Compact Hotswap 2.5" HDD microATX Rackmount Chassis ATX Power Supply Compatible

D-213-MATX-B126SA
Build to Order - 2U Compact Hotswap 2.5" HDD microATX Rackmount Chassis ATX Power Supply Compatible

Industrial compact chassis with 16" depth
6 hotswappable 2.5" bays for HDD/SSD quick swap
Supports standard ATX power supplies
2x front access USB 2.0 ports
Supports 4x low-profile add-on cards

Product Introduction

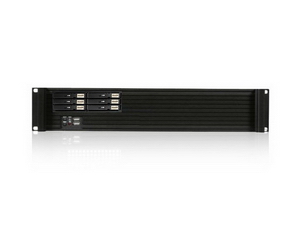

D-213-MATX-B126SA is a reliable and stable 2U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 16? deep and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX-B126SA supports 6 x 2.5? Hotswap Drives and a standard ATX power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-213-MATX-B126SA
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	Hotswap 2.5": 6 3.5" Drive (internal): 2
Hotswap HDD Type:	2.5" SATA I/II/III
Indicators	Power, HDD
Switches	Power, Reset
Expansion Slots	4 (Low profile)
Material of Front Bezel	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	Front USB 2.0 x 2 Connector
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Optional Fan:	80mm x2
Dimensions (WxHxD)	19.00" x 3.50" x 16.85" 482.6 mm x 88.9 mm x 428.0 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-350PD3	Special Order - 350W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-500PD8B	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
