D-213-MATX-WB-DT
2U Compact microATX Desktop Chassis with wood front bezel
  • Industrial compact chassis with 16" depth
  • 2x front access USB 2.0 ports
  • Supports standard ATX power supplies
  • Supports 4x low-profile add-on cards
  • Wood front bezel offers a unique look
Product Introduction

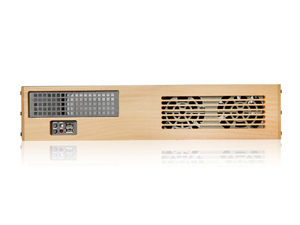

D-213-MATX-WB-DT is a stylish and reliable 2U-high industrial computer chassis, which is equipped with a wood front bezel. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 16" deep and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX-WB-DT supports a standard ATX PS2 power supply to meet regular server system applications.

Model NumberD-213-MATX-WB-DT
RoHS ComplianceYes
Form factor2 U
Standard Drive Bays 3.5" Drive (internal): 2
5.25" Drives: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2
Expansion Slots4 (Low profile)
Material of Front BezelWood
Material of HandleAluminum
Material of Main ChassisZinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size9.6 x 9.6 (microATX, mini-ITX)
Optional Fan:80mm x2
Dimensions (WxHxD)19.00" x 3.50" x 15.56"
482.6 mm x 88.9 mm x 395.2 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
BPN-DE110SSTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-DE110SS-WBTrayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-350PD3Special Order - 350W PS3 Size ATX12V Switching Power SupplyBrackets Not Required
TC-500PD8B500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
