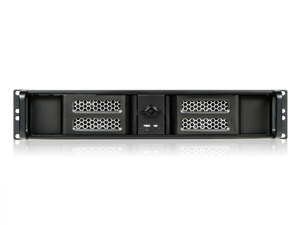

D-213ASE-MATX
EOL - 2U Compact Aluminum microATX Rackmount Chassis
  • Industrial compact chassis with short depth
  • Supports standard ATX power supplies
  • front access USB 2.0 ports
  • Supports 4x low-profile add-on cards
  • lightweight with aluminum material
  • Front bezel with a key lock to prevent unauthorized access
Product Introduction
D-213ASE-MATX is a reliable and stable 2U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplate supports 4 low profile add-on cards. This chassis is only 16" in depth with aluminum material. In addition, D-213ASE-MATX supports a standard ATX power supply to meet regular server system applications.

Model NumberD-213ASE-MATX
RoHS ComplianceYes
Form factor2 U
Standard Drive Bays 3.5" Drives: 1
3.5" Drive (internal): 2
5.25" Drives: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Expansion Slots4 (Low profile)
SecurityFront Bezel
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisAluminum
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector1x USB 2.0
Air FilterRemovable & Washable
Motherboard Size9.6 x 9.6 (microATX)
Optional Fan:60mm x2
Dimensions (WxHxD)19.00" x 3.50" x 17.50"
482.6 mm x 88.9 mm x 444.5 mm


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description
BPU-124V2-SSBuild-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
BPU-126-SASpecial Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-COMBO-SLIM5.25" Optical Drive and Floppy Drive Cage Holder
RP-COMBO-SLIM25352.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
RP-FDD355.25" Drive Bay Bracket for 3.5" Devices
RP-HDD2.52.5" to 3.5" Hard Drive Mounting Bracket
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P3.5" Drive Bay Bracket for 2x 2.5" SSDs
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
T5F-SSEOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
T5-SABuild-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
T-7M1-SATA5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
TC-ISTORM83.5" to 5.25" Hard Drive Cooling Heat Sink
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255FEOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis
BPU-124DE-SS5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
T-G525-SSIndustrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
BPN-124K-SATrayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K3525U-SATrayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
T-5K225T-SATrayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
T-5K35T-SATrayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
T-5K25TU-SATrayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Single
TC-350PD3Special Order - 350W PS3 Size ATX12V Switching Power SupplyBrackets Not Required
TC-500PD8B500W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required
TC-700PD8B700W PS2 ATX High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
