D-395-DE15

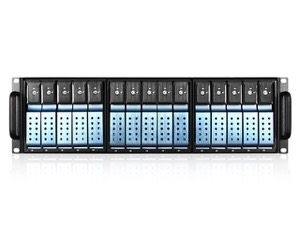

Build-to-Order - 3U 15x 3.5" Bays Trayless ATX Chassis
  • 15 trayless and hotswappable 3.5" bays for HDD quick swap
  • Supports full-size ATX motherboards
  • 5x 80mm cooling fans
  • Supports 6.0 Gb/s hard drives
  • Rear-mount brackets included
  • Compatible with 2U redundant power supplies
  • Sleek aluminum front with color options for HDD handles
Product Introduction
D-395-DE15 rackmount chassis is designed with 15x 3.5" trayless bays for any RAID configuration and also with metal key locks help secure your hard drives and prevent unauthorized access. Five 80mm fans are equipped for hard drives and system to provide the best air ventilation preventing critical equipment from heat damage. D-395-DE15 also supports 2U redundant power supplies to ensure total up time of mission critical server applications.

Model NumberD-395-DE15
RoHS ComplianceYes
Form factor3 U
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 15
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
SwitchesPower
Supported PSU Type2U
Expansion Slots7
Material of Main ChassisSteel
Color of Main ChassisBlack
Motherboard Size12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan5x80mm
Optional Fan:60mm x2
Ordering Information
(Part Number)		Black HDD Handle:D-395-DE15BK
Blue HDD Handle:D-395-DE15BL
Red HDD Handle:D-395-DE15RD
Silver HDD Handle:D-395-DE15SL
Dimensions (WxHxD)17.50" x 5.20" x 23.62"
444.5 mm x 132.1 mm x 599.9 mm
Notes- not compatible with sliding rails


Download
FAQ


There are no FAQ entries for this model.

Optional Accessories

Model #Description

Compatible Power Supplies

Model #DescriptionRequired Bracket(s)
Redundant
IS-350R2UPBuild-to-Order - 350W 2U Redundant Power SupplyBrackets Not Required
IS-400R2UPBuild-to-Order - 400W 2U Redundant Power SupplyBrackets Not Required
IS-500S2UPBuild-to-Order - 500W 2U Redundant Power SupplyBrackets Not Required
IS-700S2UPBuild-to-Order - 700W 2U Redundant Power SupplyBrackets Not Required
Single
IS-2U46PD82U 460W 80 Plus High Efficiency Power SupplyBrackets Not Required
TC-2U50PD8EOL - 500W 2U High Efficiency Switching Power SupplyBrackets Not Required
IS-2U50PD8Build-to-Order - 2U 500W 80 Plus High Efficiency Power SupplyBrackets Not Required
TC-2U60PD8EOL - 600W 2U High Efficiency Switching Power SupplyBrackets Not Required

Compatible Motherboards

Model #Motherboard SizeCompany Name

There are no compatibility motherboard for this model.
