D-410-BX36SA

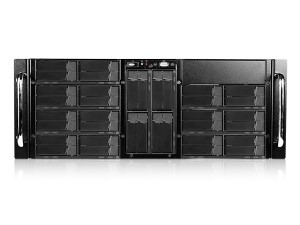

4U 36-Bay Hotswap 2.5" HDD SSD Storage Server Rackmount

Supports 36 hotswap 2.5" HDDs/SSDs
Supports SATA 6.0Gb/s Hard Drives
Front Access USB2.0 with Power and HDD LEDs
120mm x 2 Cooling Fans on Sides
ATX and PS2 mini Redundant Power Supply Compatible

Product Introduction
iStarUSA 4U industrial rackmount chassis D Storm D-410-BX36SA combines with BPX-124-SA to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 36 storage drives for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-BX36SA provides server or cluster maximum reliability and performance.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-410-BX36SA
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	Hotswap 2.5": 36 5.25" Drives: 1
Hotswap HDD Type:	2.5" SATA I/II/III
Indicators	Power, HDD
Switches	Power
Expansion Slots	7
Material of Main Chassis	Steel
Color of Main Chassis	Black
Front Connector	1x USB 2.0
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	2x120mm
Dimensions (WxHxD)	19.00" x 7.00" x 25.00" 482.6 mm x 177.8 mm x 635.0 mm

Download

Data Sheet (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500R8P	Build-to-Order - 500W PS2 Mini Redundant Power Supply	Brackets Not Required
	IX-500R8PD8	Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power Supply	Brackets Not Required
	IS-550R8P	EOL - 550W PS2 Mini Redundant Power Supply	Brackets Not Required
Single
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
