D-410-TG10

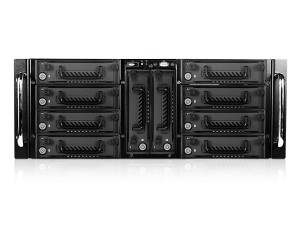

4U 10-bay Stylish Hotswap Storage Server Rackmount
4U 10-bay Stylish Hotswap Storage Server Rackmount
- Supports 10 hotswap 3.5" HDDs
- 120mm x 2 Cooling Fans on Sides
- Front Access USB2.0 with Power and HDD LEDs
- Supports 3.5" SAS/SATA Hard Drives
- Supports 6.0Gb/s HDDs
- Trayless Hard Drive Enclosure Design
- ATX and PS2 mini Redundant Power Supply Compatible
Product Introduction
4U industrial rackmount chassis D-410-TG10 combines with T-G525-SS SATA/SAS enclosure to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 10x3.5" for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-TG10 provides server or cluster maximum reliability and performance.
4U industrial rackmount chassis D-410-TG10 combines with T-G525-SS SATA/SAS enclosure to enable hot-swappable storage capability. It also supports up to seven full-length and full-height add-on cards and total storage capacity up to 10x3.5" for RAID configuration. Two 120mm cooling fans on sides provide the best ventilation to prevent critical equipment from heat damage. D-410-TG10 provides server or cluster maximum reliability and performance.
| Model Number | D-410-TG10 |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays |
Hotswap 3.5": 10 |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | PS2 |
| Expansion Slots | 7 |
| Material of Main Chassis | Zinc-Coated Steel |
| Color of Main Chassis | Black |
| Front Connector | 1x USB 2.0 |
| Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
| Cooling Fan | 2x120mm |
| Dimensions (WxHxD) | 19.00" x 7.00" x 25.00" 482.6 mm x 177.8 mm x 635.0 mm |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description | |
 | TC-RAIL-20 | 20" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-24 | 24" Sliding Rail Kit for Most Rackmount Chassis |
 | TC-RAIL-26 | 26" Sliding Rail Kit for Most Rackmount Chassis |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Redundant | |||
 | IX-500R8PD8 | Build-to-Order - 500W PS2 Mini High Efficiency Redundant Power Supply | Brackets Not Required |
 | IS-550R8P | EOL - 550W PS2 Mini Redundant Power Supply | Brackets Not Required |
| Single | |||
 | TC-700PD8B | 700W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
