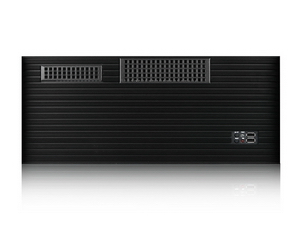

D-411S3-DT
Build-to-Order - 4U Compact Server/Desktop ATX Chassis

Supports Front Access USB2.0 x2
Power and HDD LED
Power and Reset Switch
Support ATX PS2 Power Supply
Support 7 x Full Height Add-on Cards
Industrial Chassis with 13.5" in Depth

Product Introduction
D-411S3-DT is a reliable and stable 4U-high 13" depth industrial computer chassis. The full size I/O supports all ATX/microATX motherboards with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is only 13? deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-411S3-DT supports a standard PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	D-411S3-DT
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	3.5" Drives: 1 5.25" Drives: 1
Indicators	LEDs for Power ON/OFF & HDD
Switches	Power, Reset
Expansion Slots	7 (up to 160mm deep)
Material of Front Bezel	Aluminum
Material of Main Chassis	Zinc-Coated Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	Front USB 2.0 x 2 Connector
Motherboard Size	12 x 9.6 (ATX, microATX)
Optional Fan:	60mm x2, 80mm x2
Dimensions (WxHxD)	19.00" x 7.00" x 11.81" 482.6 mm x 177.8 mm x 300.0 mm

Download

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	RHF-03
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink

	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-250PD3	Build-to-Order - 250W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-400PD8	Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD8	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
