D-416-DE10

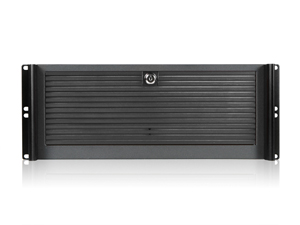

4U Compact Stylish 10x3.5" Trayless Hotswap Rackmount Chassis
4U Compact Stylish 10x3.5" Trayless Hotswap Rackmount Chassis
- Supports front access USB ports
- Supports standard ATX PSU
- Compatible with redundant power supplies
- 10 trayless hot-swappable bays for 3.5" HDDs
- Supports 3.5" SAS and SATA hard drives
- Key lock front bezel to prevent unauthorized access
Product Introduction
D-416-DE10 is a reliable and stable 4U-high server chassis. Installed with BPN-DE350SS enable 10x3.5" Trayless Hotswap storage capability. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DE10 supports a standard ATX PS2 power supply to meet regular server system applications.
D-416-DE10 is a reliable and stable 4U-high server chassis. Installed with BPN-DE350SS enable 10x3.5" Trayless Hotswap storage capability. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DE10 supports a standard ATX PS2 power supply to meet regular server system applications.
| Model Number | D-416-DE10 |
| RoHS Compliance | Yes |
| Form factor | 4 U |
| Standard Drive Bays |
3.5" Drive (internal): 2 Hotswap 3.5": 10 |
| Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
| Indicators | Power, HDD |
| Switches | Power, Reset |
| Supported PSU Type | PS2 |
| Expansion Slots | 7 |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Galvanized Steel |
| Color of Front Bezel | Black |
| Color of Main Chassis | Black |
| Motherboard Size | 12 x 9.6 (ATX, microATX) |
| Optional Fan: | 80mm x2, 60mm x2 |
| Ordering Information (Part Number) | Black HDD Handle:D416-DE10BK |
| Dimensions (WxHxD) | 19.00" x 7.00" x 21.77" 482.6 mm x 177.8 mm x 553.0 mm |
| Notes | - the two internal 3.5" bays at the bottom of drive cage cannot be used when an EATX motherboard is in place. |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) | |
| Single | |||
 | TC-400PD8 | Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
 | TC-500PD3 | Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply | Brackets Not Required |
 | TC-500PD8 | 500W PS2 ATX High Efficiency Switching Power Supply | Brackets Not Required |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
