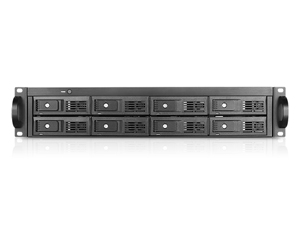

DAGE208UTL-2MS
2U 8-bay 3.5" SAS/SATA 6.0Gb/s miniSAS SFF8088 JBOD Trayless Rackmount Chassis

Supports 8x 3.5" SAS/SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
3x 80mm Cooling Fans for Ventilation
2x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
Trayless Design
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction
DAGE208UTL-2MS is an external 2U-8 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 8 hard drives for RAID configurations in 2U form factor. This 2U-8 bay external SAS/SATA JBOD is designed with 2 high quality miniSAS (SFF8088) connectors. Three 80mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE208UTL-2MS provides maximum storage and performance to high density storage system.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	DAGE208UTL-2MS
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	None
Material of Main Chassis	Steel
Color of Main Chassis	Black
Cooling Fan	3x80mm
Ordering Information (Part Number)	with 500W Single PSU: DAGE208UTL-2MS with 400W Redundant PSU: DAGE208UTL-2MS-R
Dimensions (WxHxD)	19.00" x 3.50" x 19.92" 482.6 mm x 88.9 mm x 506.0 mm

Download

Controller Reference

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis
	RP-RAIL-26-1U	Build to Order - 26" Sliding Rail Kit for 1U Rackmount Chassis
	RP-RAIL-26S	EOL - 26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis
	K-HD4488-1M	HD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
	K-SF88-1M	miniSAS SFF-8088 1 meter Cable
