Industrial Chassis | iStarUSA Products | DAGE415U40DE-PM - 4U 15-bay 3.5" SATA 6.0Gb/s eSATA-Port Multiplier Trayless JBOD Chassis

DAGE415U40DE-PM

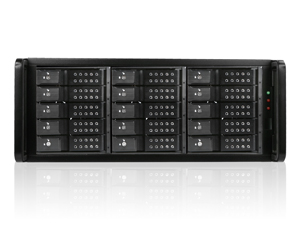

4U 15-bay 3.5" SATA 6.0Gb/s eSATA-Port Multiplier Trayless JBOD Chassis

3x eSATA Connectors with Port Multiplier Support
120mm Cooling Fan for Ventilation
LED Indicators for Power and Activity on Each Hard Drive
Hot-swappable Both on Host and Device
Supports 15x SATA 6Gb/s Hard Drives
Trayless Design
Individual Lock of each HDD Tray for Physical Security

Product Introduction
DAGE415U40DE-PM is an external 4U-15 bay trayless hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 15 hard drives for RAID configurations. This 4U-15 Bay external SATA Enclosure is designed with 3 high quality eSATA (Port Multiplier) connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE415U40DE-PM provides maximum storage and performance to high density storage system.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	DAGE415U40DE-PM
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	Hotswap 3.5": 15
Hotswap HDD Type:	3.5" SATA I/II/III
Material of Main Chassis	Chassis: 1.2 mm SECC Zinc-Coated Steel
Color of Main Chassis	Black
Cooling Fan	1x120mm
Ordering Information (Part Number)	700W Single PSU: Black HDD Handle:DAGE415U40DEBK-PM Blue HDD Handle:DAGE415U40DEBL-PM Red HDD Handle:DAGE415U40DERD-PM Silver HDD Handle:DAGE415U40DESL-PM 550W Redundant PSU: Black HDD Handle:DAGE415U40DEBK-PM-R Blue HDD Handle:DAGE415U40DEBL-PM-R Red HDD Handle:DAGE415U40DERD-PM-R Silver HDD Handle:DAGE415U40DESL-PM-R
Dimensions (WxHxD)	19.00" x 7.00" x 20.00" 482.6 mm x 177.8 mm x 508.0 mm

Download

Controller Reference

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	CAGE-ESA2ESA	Build-to-Order - ESATA to ESATA External SATA Cable
