Industrial Chassis | iStarUSA Products | DW-102 - Build-to-Order Compact Stylish Industrial Wall-Mounted Chassis

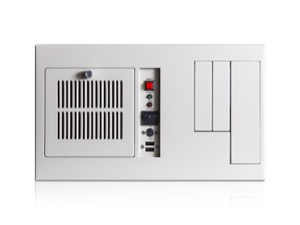

DW-102
Build-to-Order Compact Stylish Industrial Wall-Mounted Chassis

Front Access USB2.0 x2
120mm x1, Ball-bearing Cooling Fan
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
Support up to ATX Motherboard

Product Introduction
The DW-102 Wall -mounted Chassis has the durability and flexibility to make this a chassis that can handle any task required. The solid steel construction and removable air filter help this chassis stand up to the most rigorous of conditions. The DW-102 accepts full size ATX motherboards as well 1 x 5.25" and 2 x 3.5" drive bays for flexible storage. The DW-102 is a rugged wall-mounted chassis solution to all of your needs.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	DW-102
RoHS Compliance	Yes
Standard Drive Bays	3.5" Drives: 2 3.5" Drive (internal): 1 5.25" Drives: 1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2 ATX
Expansion Slots	7
Security	None
Material of Front Bezel	SGCC 1.2mm
Material of Main Chassis	SGCC 1.2mm
Color of Front Bezel	Beige
Color of Main Chassis	Beige
Air Filter	Removable & Washable
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	1x120mm
Dimensions (WxHxD)	13.00" x 7.72" x 16.00" 330.2 mm x 196.1 mm x 406.4 mm
Notes	- HTS code: 8473.30.5100 (ECCN is not applicable).

Download

Data Sheet (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	TC-250PD3	Build-to-Order - 250W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-350PD3	Special Order - 350W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-400PD8	Build-to-Order - 400W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD3	Build-to-Order - 500W PS3 Size ATX12V Switching Power Supply	Brackets Not Required
	TC-500PD8B	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-500PD8	500W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-680PD8	Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-700PD8B	700W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	TC-750PD8	Build-to-Order - 750W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-780PD8	Build-to-Order - 780W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
	IS-880PD8	Build-to-Order - 880W PS2 ATX High Efficiency Switching Power Supply	Brackets Not Required
