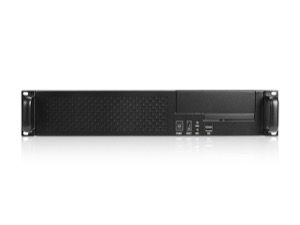

Industrial Chassis | iStarUSA Products | E-20-SY - 2U Rugged 15" Compact Rackmount Chassis

E-20-SY
2U Rugged 15" Compact Rackmount Chassis

Compact 15" Depth
1.6mm Steel Body Chassis
Front Access USB2.0 x2
Air Filter
80mm Cooling Fan

Product Introduction
E-20 Rugged grade rackmount chassis is designed with ultra compact size for toughest and compact environment. The E-20 is 2U height with only 15" in depth and special features of front USB access and 80mm cooling fan to enhance functionality and usability for critical missions and applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	E-20-SY
RoHS Compliance	Yes
Form factor	2 U
Standard Drive Bays	3.5" Drive (internal): 2 Slim 3.5" FDD: 1 5.25" Drives: 1
Indicators	LEDs for Power ON/OFF and HDD
Switches	Power ON/OFF, System & Alarm Reset
Expansion Slots	3
Material of Main Chassis	1.6mm SECC Zinc-Coated Steel
Air Filter	Washable
Motherboard Size	12 x 9.6 (ATX, microATX, mini-ITX)
Cooling Fan	1x60mm blower, 1x80mm
Dimensions (WxHxD)	19.00" x 3.50" x 15.00" 482.6 mm x 88.9 mm x 381.0 mm
Notes	- compatible with riser card DD-666-CX with 5cm ribbon cable (DD-666-C5). not compatible with DD-666-C5-02

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Single
	IS-1U35PD8	Build-to-Order - 1U 350W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U40PD8	1U 400W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U46PD8	Build-to-Order - 1U 460W 80 Plus High Efficiency Power Supply	Brackets Not Required
	IS-1U50PD8	1U 500W 80 Plus High Efficiency Power Supply	Brackets Not Required
	TC-1U50PD8	1U 500W High Efficiency Switching Power Supply	Brackets Not Required
