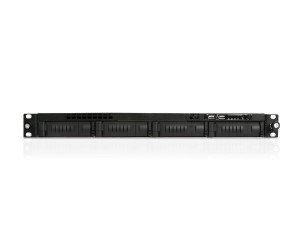

Model Number | EX1M4-28R1UP8 |
RoHS Compliance | Yes |
Form factor | 1 U |
Standard Drive Bays |
2.5" Drive (internal): 1 Hotswap 3.5": 4 Slim 5.25" Optical: 1 |
Hotswap HDD Type: | 3.5" SAS I/II & SATA I/II/III |
Indicators | Power, HDD, LAN |
Switches | Power On/Off, Reset, Mute |
Expansion Slots | 1 |
Material of Main Chassis | Heavy-duty SGCC Cold-rolled Steel |
Color of Main Chassis | Silver |
Front Connector | 2x USB 2.0 |
Motherboard Size | 12 x 13 (EATX, ATX, microATX) |
Cooling Fan | 5x40mm |
Dimensions (WxHxD) | 19.00" x 1.75" x 25.98" 482.6 mm x 44.4 mm x 659.9 mm |
Notes | - hard drive backplane requires 2 molex power connectors. - standard I/O shield will NOT fit any 1U chassis. |
There are no downloadable media for this product. |
There are no FAQ entries for this model. |
Model # | Description | |
![]() | K-SF87XSA-50 | miniSAS SFF-8087 to 4x SATA Forward Breakout 50 cm Cable |
![]() | K-SF87RXSA-50 | miniSAS SFF-8087 Right Angle to 4x SATA Forward Breakout 50 cm Cable |
![]() | K-SF87XSAL-50 | miniSAS SFF-8087 to 4x SATA with Latch Forward Breakout 50 cm Cable |
![]() | K-HD43XSA-50 | HD miniSAS SFF-8643 to 4x SATA Forward Breakout 50 cm Cable |
![]() | K-HD43XSAL-75 | HD miniSAS SFF-8643 to 4x SATA Latch Forward Breakout 75 cm Cable |
Model # | Description | Required Bracket(s) | |
Redundant | |||
![]() | IS-300RSH1UP | Build-to-Order - 300W 1U Redundant 1+1 Power Supply | BRT-EX1M4-SET (1) |
![]() | IX-500RSH1UP8G | 500W 1U High Efficiency Redundant Power Supply | BRT-EX1M4-IX (1) |
![]() | IX-650RSH1UP8G | 650W 1U High Efficiency Redundant Power Supply | BRT-EX1M4-IX (1) |
Single | |||
![]() | IS-1U35PD8 | Build-to-Order - 1U 350W 80 Plus High Efficiency Power Supply | Brackets Not Required |
![]() | IS-1U40PD8 | 1U 400W 80 Plus High Efficiency Power Supply | Brackets Not Required |
![]() | IS-1U46PD8 | Build-to-Order - 1U 460W 80 Plus High Efficiency Power Supply | Brackets Not Required |
![]() | IS-1U50PD8 | 1U 500W 80 Plus High Efficiency Power Supply | Brackets Not Required |
Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. |
