Industrial Chassis | iStarUSA Products | EX3M16-80S2UP8 - Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis with 800W Redundant Power Supply

EX3M16-80S2UP8

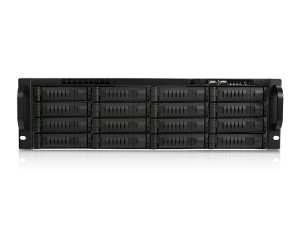

Build-to-Order - 3U 16-Bay Storage Server Rackmount Chassis with 800W Redundant Power Supply

Fiber Optical Drive Tray Status Indicator
Fully RoHS Compliance
Power + LAN + HDD LED Indicator
Front Access USB Connector
miniSAS (SFF-8087) 6Gb/s HDD Backplane with SGPIO
Support EATX Motherboard
Supports Both SAS/SATA Hard Drives
Sliding Rails Included
3x 120mm Hotswappable PWM Fans
800W redundant power supply

Product Introduction
The EX3M16-80S2UP8 storage server rackmount not only has the stylish appearance, but the functionality and flexibility make the chassis a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also the 800W redundant power supply ensures total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	EX3M16-80S2UP8
RoHS Compliance	Yes
Form factor	3 U
Standard Drive Bays	2.5" Drive (internal): 1 Hotswap 3.5": 16 Slim 5.25" Optical: 1
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD, LAN
Switches	Power, Reset
Expansion Slots	7
Material of Handle	Aluminum
Material of Main Chassis	Heavy-duty SGCC Cold-rolled Steel
Color of Main Chassis	Black
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	3x120mm
Optional Fan:	60mm x2
Dimensions (WxHxD)	19.00" x 5.25" x 27.10" 482.6 mm x 133.3 mm x 688.3 mm
Notes	- hard drive backplane requires 4 molex power connectors - a controller with at least four SFF-8087 or SFF-8643 connectors is required

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	K-SF87-75	miniSAS SFF-8087 75 cm Cable
	K-HD4387-50	HD miniSAS SFF-8643 to miniSAS SFF-8087 50 cm Cable
	K-HD4387R-50	HD miniSAS SFF-8643 to miniSAS SFF-8087 Right Angle 50 cm Cable
	K-SF87R-50	miniSAS SFF-8087 Right Angle 50 cm Cable

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-500S2UP	Build-to-Order - 500W 2U Redundant Power Supply	BRT-EX-S2UP (1)
	IS-700S2UP	Build-to-Order - 700W 2U Redundant Power Supply	BRT-EX-S2UP (1)
	IS-760S2UPD8	760W 2U High Efficiency Redundant Power Supply	Brackets Not Required
	IS-960S2UPD8	960W 2U High Efficiency Redundant Power Supply	Brackets Not Required
Single
	IS-2U40PD8	Build-to-Order - 2U 400W 80 Plus High Efficiency Power Supply	BRT-EX-DC-S (1)
	IS-2U46PD8	2U 460W 80 Plus High Efficiency Power Supply	BRT-EX-DC-S (1)
	IS-2U50PD8	Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply	BRT-EX-DC-S (1)
