Industrial Chassis | iStarUSA Products | M-140HD-JB - COMING SOON - 1U 4-Bay Trayless JBOD Storage Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

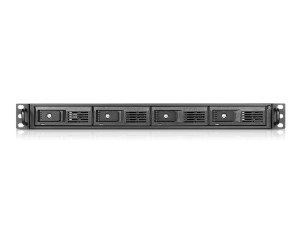

M-140HD-JB
COMING SOON - 1U 4-Bay Trayless JBOD Storage Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

4 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless storage rackmount
HD miniSAS (SFF-8643) HDD Backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
Built-in 150W open-frame PSU
Centronics cut-out to support various interface bridgeboards
Supports 3.5" SAS I/II/III and SATA I/II/III HDD
High Performance Transfer Rate up to 12Gb/s

Product Introduction
The M-140HD-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis also has a built-in 150W open-frame power supply and one HD miniSAS (SFF-8643) backplane to support SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	M-140HD-JB
RoHS Compliance	Yes
Form factor	1 U
Standard Drive Bays	Hotswap 3.5": 4
Hotswap HDD Type:	3.5" SAS I/II/III & SATA I/II/III
Indicators	Power, HDD
Switches	Power
Supported PSU Type	150W Open-frame PSU included
Expansion Slots	1 (Centronics)
Security	Key Lock
Material of Front Bezel	Aluminum with Steel
Material of Handle	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Cooling Fan	2x40mm
Dimensions (WxHxD)	19.00" x 1.75" x 14.96" 482.6 mm x 44.4 mm x 380.0 mm
Notes	- power cord is not included.
