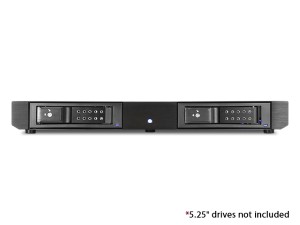

T-12
Build-to-Order - 1U Compact Desktop and Rackmount JBOD Chassis

Ultra compact industrial chassis with 11" Depth
Desktop or rackmount convertible
Supports various interfaces including USB 3.0, eSATA, and miniSAS (SFF-8088)
Full range AC input 150W power supply included
40mm cooling fan for ventilation

Product Introduction
iStarUSA external multi-bay JBOD chassis is designed specially for storage applications. With iStarUSA hotswap hard drive cages, it is able to hold up to 8x 2.5" HDDs/SSDs for storing mass data. 40mm cooling fan enhances the ventilation inside. The external JBOD storage chassis with solid construction is a cost-effective and flexible solution for your critical data storage.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	T-12
RoHS Compliance	Yes
Form factor	1 U
Standard Drive Bays	5.25" Drives: 2
Indicators	Power
Switches	Power
Supported PSU Type	Open-frame PSU
Expansion Slots	2 (Centronics)
Material of Front Bezel	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Cooling Fan	1x40mm
Optional Fan:	40mm x1
Dimensions (WxHxD)	19.00" x 1.75" x 11.18" 482.6 mm x 44.4 mm x 284.0 mm

Download

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
