U-224HD

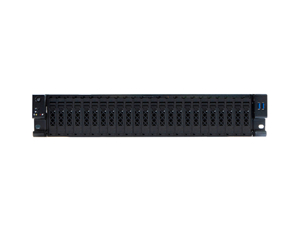

Build-to-Order - 2U 24-Bay 2.5" HDD Storage Server Rackmount Chassis
Build-to-Order - 2U 24-Bay 2.5" HDD Storage Server Rackmount Chassis
- Fiber Optical Drive Tray Status Indicator
- Advance Thermal Cooling Design Optimizes Airflow
- Front Access USB 3.0 Connector
- Power/Alarm Reset Switch
- Fully RoHS Compliance
- Anodoze Color Front Panel with Locks
- Backplane Host interface:Slimline SAS SFF 8654
- Backplase HDD interface: SAS/SATA
Product Introduction
The U storage server series rackmount has the unique outward appearance design, but the functionality and flexibility make U series a new breed of storage server. Also U series has effective cooling system. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the Slim SAS SFF-8654 12Gb/s, 24Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.
The U storage server series rackmount has the unique outward appearance design, but the functionality and flexibility make U series a new breed of storage server. Also U series has effective cooling system. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the Slim SAS SFF-8654 12Gb/s, 24Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.
| Model Number | U-224HD |
| RoHS Compliance | Yes |
| Form factor | 2 U |
| Standard Drive Bays |
Hotswap 2.5": 24 |
| Hotswap HDD Type: | 2.5" & 3.5" SAS I/II/III/IV & SATA I/II/III |
| Indicators | N/A |
| Switches | Power, Reset, Mute |
| Expansion Slots | 7 (Low profile) |
| Security | Front Bezel |
| Material of Front Bezel | steel with anodize color paint |
| Material of Handle | Aluminum |
| Material of Main Chassis | Heavy-duty SGCC Cold-rolled Steel |
| Front Connector | 2x USB 3.0 |
| Motherboard Size | 12 x 10.5 (ATX, microATX) |
| Cooling Fan | 3x80mm |
| Dimensions (WxHxD) | 19.00" x 3.46" x 20.71" 482.6 mm x 87.9 mm x 526.0 mm |
FAQ
There are no FAQ entries for this model. |
Optional Accessories
| Model # | Description |
Compatible Power Supplies
| Model # | Description | Required Bracket(s) |
Compatible Motherboards
| Model # | Motherboard Size | Company Name |
There are no compatibility motherboard for this model. | ||
Featured Videos
| There are currently no iStarVideos for this Item. |
