Industrial Chassis | iStarUSA Products | V-4-M24SA - Build-to-Order - 4U 24-Bay Storage Server Rackmount Chassis

V-4-M24SA

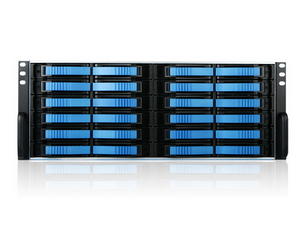

Build-to-Order - 4U 24-Bay Storage Server Rackmount Chassis

Dual Build-In OS Drive for RAID Function
Industrial Grade Aluminum Drive Tray Handle with iStarUSA Signature Design
Fiber Optical Drive Tray Status Indicator
Advance Thermal Cooling Design that Optimize Airflow
Support Up to Quad CPU EATX Motherboard
Single/MultiLane SATA, MultiLane SAS, and D-Sub Backplane Option
Build-in Top Cover Handle with Thumb Screws
Fully RoHS Compliance

Product Introduction
The V Series storage server rackmount chassis with iStarUSA signature drive tray. Not only the stylish look of its appearance, but the functionality, flexibility, and uncompromised performance makes V Series a new breed of storage server. As Serial technology became a more cost effective solution, iStarUSA has taken a step forward to prepare the migration of new technology trend. iStarUSA also incorporated redundant OS drive to ensure total up time of mission critical server applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Power Supplies	Compatible Motherboards

Model Number	V-4-M24SA
RoHS Compliance	Yes
Form factor	4 U
Standard Drive Bays	3.5" Drive (internal): 4 Hotswap 3.5": 24 Slim 5.25" Optical: 1
Hotswap HDD Type:	3.5" SATA I/II
Indicators	HDD LED
Switches	Power ON/OFF and System Reset
Expansion Slots	7
Material of Handle	Aluminum
Material of Main Chassis	Heavy-Duty Cold-Roll Steel
Motherboard Size	12 x 13 (EATX, ATX, microATX)
Cooling Fan	3x40mm, 4x80mm, 1x90mm
Ordering Information (Part Number)	Black Tray:V-4-M24SA-BLACK Red Tray:V-4-M24SA-RED Silver Tray:V-4-M24SA-SILVER
Dimensions (WxHxD)	19.00" x 7.00" x 27.00" 482.6 mm x 177.8 mm x 685.8 mm

Download

Data Sheet (PDF)

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	RP-RAIL28-VS	EOL - Heavy Duty 28" Rail Kit

Compatible Power Supplies

	Model #	Description	Required Bracket(s)
Redundant
	IS-1500RH1UP	Build-to-Order - 1500W 1U Redundant Power Supply	Brackets Not Required
	IS-1800RH1UP	Build-to-Order - 1800W 1U Redundant Power Supply	Brackets Not Required
	IS-2000RH1UP	Build-to-Order - 2000W 1U Redundant Power Supply	Brackets Not Required
