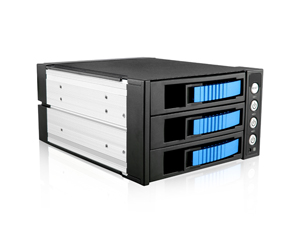

BPU-230SATA
2x 5.25" to 3x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack
  • Stylish aluminum color handle and heat-sink body
  • Support Hot-Swap & RAID Configuration (need an additional RAID controller)
  • Aluminum Design with Conductive Dissipation Grooves
  • Power, fan and high temperature LED indicators
  • High Performance Transfer Rate up to 6.0 Gb/s
  • Supports Both 2.5" and 3.5" SAS I/II & SATA I/II/III HDDs
  • Equipped with Fan Speed Control Switch
  • 12TB Hard Drives Compatible



Model NumberBPU-230SATA
RoHS Compliance VersionYes
Ordering Information
(Part Number)
Black Tray:BPU-230SATA-BLACK
Blue Tray:BPU-230SATA-BLUE
Red Tray:BPU-230SATA-RED
Silver Tray:BPU-230SATA-SILVER
Lockable Tray:BPU-230SATA-BPL
Dimensions (WxHxD)5.75" x 3.39" x 8.22"
146.1 mm x 86.1 mm x 208.8 mm
