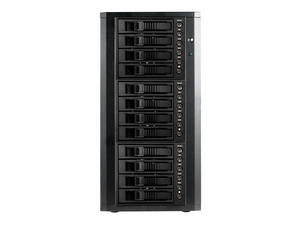

DAGE1240-ES
12-bay SATA 6.0 Gb/s eSATA Hotswap JBOD Enclosure

Supports 12x 2.5"/3.5" SATA 6Gb/s Hard Drives
12x eSATA Connectors
4x 80mm Cooling Fans for Ventilation
Color HDD Trays as Options
LED Indicators for Power and Activity on Each Hard Drive
Supports up to 6.0Gb/s Data Transfer Speed Per eSATA Connection
Hot-swappable Both on Host and Device

Product Introduction
DAGE1240-ES is an external 12-bay SATA disk array storage tower. It provides users a most big storage capacity for up to 12 hard drives for RAID configuration in compact size. This external tower is designed with twelve eSATA connectors. Four quiet 80mm cooling fans offer long lasting and enhanced thermal cooling solution.

Specification	Download	FAQ
Accessories	Connection Diagram

Model Number	DAGE1240-ES
RoHS Compliance	Yes
Host Interface	12x eSATA
HDD Interface	2.5" & 3.5" SATA I/II/III
Hotswap 3.5"	12
LED Display	Power and HDD Activity
Material	Steel
Main Color	Black
Power Supply	400W
Raid Level	Configured by Host Controller
Cooling Fan	4x80mm
Ordering Information (Part Number)	Black HDD Handle:DAGE1240BK-ES Blue HDD Handle:DAGE1240BL-ES Red HDD Handle:DAGE1240RD-ES Silver HDD Handle:DAGE1240SL-ES
Dimensions (WxHxD)	8.00" x 17.00" x 18.00" 203.2 mm x 431.8 mm x 457.2 mm
