DAGE412U40DE-3MS

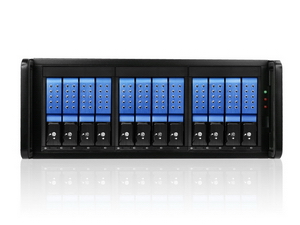

4U 12-bay 3.5" SAS/SATA 6.0 Gb/s miniSAS SFF-8088 JBOD Trayless Chassis

Supports 12x 3.5" SAS/SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
120mm Cooling Fan for Ventilation
3x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
Trayless Design
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction
DAGE412U40DE-3MS is an external 4U-12 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 12 hard drives for RAID configurations. This 4U-12 Bay external SAS/SATA JBOD is designed with 3 high quality miniSAS (SFF8088) connectors. One 120mm ball bearing fan offers long lasting and enhanced thermal cooling solution. DAGE412U40DE-3MS provides maximum storage and performance to high density storage system.

Specification	Download	FAQ
Accessories	Connection Diagram

Model Number	DAGE412U40DE-3MS
RoHS Compliance	Yes
Form Factor	4U
Host Interface	3x miniSAS (SFF8088)
HDD Interface	3.5" SAS I/II & SATA I/II/III
Hotswap 3.5"	12
LED Display	Power and HDD Activity
Material	Chassis: 1.2 mm SECC Zinc-Coated Steel
Main Color	Black
Power Supply	500W
Raid Level	Configured by Host Controller
Cooling Fan	1x120mm
Ordering Information (Part Number)	500W Single PSU: Black HDD Handle:DAGE412U40DEBK-3MS Blue HDD Handle:DAGE412U40DEBL-3MS Red HDD Handle:DAGE412U40DERD-3MS Silver HDD Handle:DAGE412U40DESL-3MS Wood Look HDD Handle:DAGE412U40DEWB-3MS 550W Redundant PSU: Black HDD Handle:DAGE412U40DEBK-3MS-R Blue HDD Handle:DAGE412U40DEBL-3MS-R Red HDD Handle:DAGE412U40DERD-3MS-R Silver HDD Handle:DAGE412U40DESL-3MS-R Wood Look HDD Handle:DAGE412U40DEWB-3MS-R
Dimensions (WxHxD)	19.00" x 7.00" x 20.00" 482.6 mm x 177.8 mm x 508.0 mm
