IS-1000PD8
Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply
Build-to-Order - 1000W PS2 ATX 80 Plus High Efficiency Switching Power Supply
- Universal Input, Active PFC
- High Efficiency 80% minimum
- Industrial Japanese Components 40 degrees temperature
- Industrial DIN-Connector for Reliability
- Remote Sensor on +5V & +3.3V
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
- MTBF > 100,000 Hours
Product Introduction
The XEAL 80 Plus series switching power supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. Standard PS2 form factor fits most ATX or 4U chassis. The 80 Plus means that at least 80 percent efficiency at 20, 50, and 100 percent loads, which saves users on electric bills and less cooling requirement. iStarUSA 80 Plus series is the ideal power supply for high-end workstation.
The XEAL 80 Plus series switching power supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. Standard PS2 form factor fits most ATX or 4U chassis. The 80 Plus means that at least 80 percent efficiency at 20, 50, and 100 percent loads, which saves users on electric bills and less cooling requirement. iStarUSA 80 Plus series is the ideal power supply for high-end workstation.
| Model Number | IS-1000PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 1000 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 20+4 pin 4pin 12V :: 1 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 2 Molex :: 6 SATA :: 8 Floppy :: 1 6pin PCIE :: 2 |
| Dimensions (WxHxD) | 5.91" x 3.39" x 7.48" 150.1 mm x 86.1 mm x 190.0 mm |
Parts & Accessories
| Image | Accessory | Description |

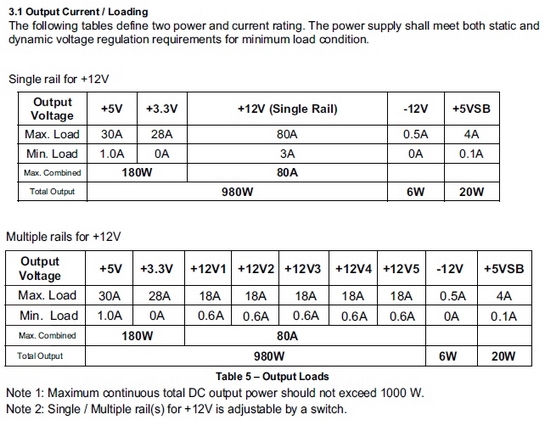

Output
FAQ
| Q : | What is 80 PLUS? |
| A : | Please refer to the document. |
Featured Videos
There are currently no iStarVideos for this Item.
Compatible Chassis
| Model # | Description | |
 | D2-400-6 | 4U Compact Stylish Rackmount Chassis |
 | D2-400-7-BLUE | 4U Compact Stylish Rackmount Chassis |
 | D2-400L-M10SA | Build-to-Order - 4U 10 Hot-Swappable Rackmount Chassis |
 | D-400-2P | Build-to-Order - 4U Compact Stylish Rackmount Chassis |
 | D-400-5 | Build-to-Order - 4U Compact Stylish Rackmount Chassis |
 | D-400-6 | 4U Compact Stylish Rackmount Chassis |
 | D-400-6SE | 4U Compact Stylish Rackmount Chassis |
 | D-400-7 | 4U Compact Stylish Rackmount Chassis |
 | D-400-7P | 4U Compact Stylish Rackmount Chassis |
 | D-400-8 | Build-to-Order - 4U Compact Stylish Rackmount Chassis |
 | D-400A | Build-to-Order - 4U Compact Stylish Aluminum Rackmount Chassis |
 | D-400A-6 | Build-to-Order - 4U Compact Stylish Aluminum Rackmount Chassis |
 | D-400ASE | Build-to-Order - 4U Compact Stylish Aluminum Rackmount Chassis |
 | D-400-JB | Build-to-Order - 4U Disk Array JBOD Storage Rackmount Chassis |
 | D-400L-7 | 4U High Performance Rackmount Chassis |
 | D-400L-7SE | 4U High Performance Rackmount Chassis |
 | D-400SE | 4U Compact Stylish Rackmount Chassis |
 | D-410 | 4U 10-Bay Stylish Storage Server Rackmount |
 | D-414 | 4U 14 Slots Industrial PC Rackmount Chassis |
 | D-414-2P | 4U 14 Slots Industrial PC Rackmount Chassis |
 | D-414L-7 | 4U 14 Slots Industrial PC Rackmount Chassis |
 | E-40 | Build-to-Order - 4U Rugged 15" Compact Rackmount Chassis |
 | E-4000 | 4U Rugged Compact 17" Rackmount Chassis |
 | E-4140 | 4U Rugged 14-slot Compact 17" Rackmount Chassis |
 | E4M20 | 4U 20-Bay Storage Server Rackmount Chassis |
 | EA-2M8-JB | 2U 8-Bay Storage Rackmount Chassis |
 | D-407SE-TS859 | 4U Compact Stylish Rackmount Chassis with 8" Touch Screen LCD |
 | D-407LSE-TS859 | 4U High Performance Rackmount Chassis with 8" Touch Screen LCD |
 | D-407SE14-TS859 | 4U 14-slot Compact Stylish Rackmount Chassis with 8" Touch Screen LCD |
 | D-407LSE14-TS859 | 4U 14-slot High Performance Rackmount Chassis with 8" Touch Screen LCD |
 | D-407P-DE4 | 4U Compact Stylish 4x3.5" Trayless Hotswap Rackmount Chassis |
 | D-407P-DE6 | 4U Compact Stylish 6x3.5" Trayless Hotswap Rackmount Chassis |
 | D-407P-DE5 | 4U Compact Stylish Rackmount 5x3.5" Trayless Hotswap Chassis |
 | D-406ND-B6SA | 4U Compact Stylish 6x3.5" Hotswap Server Chassis |
 | D-400SEA | 4U Compact Stylish Rackmount Chassis with SEA Bezel |
 | D-400 | 4U Compact Stylish Rackmount Chassis |
 | D-400-P | 4U Compact Stylish Rackmount Chassis |
 | S-917 | Compact Stylish 7x 5.25" Bay mini-ITX Tower |
 | S-919 | Build-to-Order - Compact Stylish 9x 5.25" Bay microATX Tower |
 | D-406SE-B6SA | 4U Compact Stylish 6x3.5" Hotswap Server Chassis |
 | D-407P-500R8PD8 | 4U Compact Stylish Rackmount Chassis with 500W Redundant Power Supply |
 | D-407L-500R8PD8 | 4U High Performance Rackmount Chassis with 500W Redundant Power Supply |
 | S-917-500R8PD8 | Compact Stylish 7x 5.25" Bay mini-ITX Tower with 500W Redundant Power Supply |
 | S-9112-EATX | Build-to-Order - Stylish 12x 5.25" Bay EATX GPU Tower |
 | D-407P-50R8A | 4U Compact Stylish Rackmount Chassis with 500W Redundant Power Supply |
 | D-407P-55R8P | 4U Compact Stylish Rackmount Chassis with 550W Redundant Power Supply |
 | D-407P-80R3N | 4U Compact Stylish Rackmount Chassis with 800W Redundant Power Supply |
 | D-407P-100R3N | 4U Compact Stylish Rackmount Chassis with 1000W Redundant Power Supply |
 | D2-407-BL-50R8P8 | 4U Compact Stylish Rackmount Chassis with 500W Redundant Power Supply |
 | D2-407-BL-55R8P | 4U Compact Stylish Rackmount Chassis with 550W Redundant Power Supply |
 | D-403A-14 | Build-to-Order 4U 14 Slots Industrial PC Compact Rackmount Chassis |
 | D-402A-14 | Build-to-Order 4U 14 Slots Industrial PC Rackmount Chassis |
 | E4M20HD | 4U 20-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane |
 | D2-400-7-SY | 4U Compact Stylish Rackmount Chassis |
