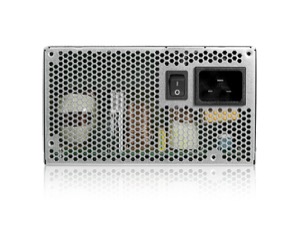

TC-1200PD8G
EOL - 1200W PS2 ATX High Efficiency Switching Power Supply
EOL - 1200W PS2 ATX High Efficiency Switching Power Supply
- ATX 12V 2.3 and EPS 2.92 compliant
- High Reliability: MTBF>100,000 hours
- SATA and PCI-E Ready
- Protection: Over Current, Over Voltage, Short-Circuit
- Modularized cable for a Clean Look and Better Airflow
- 120mm Low Noise Thermal-controlled Ball Bearing Fan
- Eight 6+2pin PCI-E connectors to support Multi-GPU Graphic cards
- Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances)
- High Efficiency 87% minimum
Product Introduction
The TC-1200PD8G high performance switching power supply supports latest motherboard connectors of 24, 8, and 4 pins. It sets new standard in server and industrial power supply. In addition, TC-1200PD8G comes with eight 6+2pin PCI-Express connectors, six Molex connectors, and ten SATA power connectors for various applications. Modular interface gives TC-1200PD8G a clean look and better airflow and high efficiency power supply saves on electric bills and less cooling requirement. TC-1200PD8G is the ideal power supply for server and high-end gaming workstation.
The TC-1200PD8G high performance switching power supply supports latest motherboard connectors of 24, 8, and 4 pins. It sets new standard in server and industrial power supply. In addition, TC-1200PD8G comes with eight 6+2pin PCI-Express connectors, six Molex connectors, and ten SATA power connectors for various applications. Modular interface gives TC-1200PD8G a clean look and better airflow and high efficiency power supply saves on electric bills and less cooling requirement. TC-1200PD8G is the ideal power supply for server and high-end gaming workstation.
| Model Number | TC-1200PD8G |
| RoHS Compliance | Yes |
| Output Wattage | 1200 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 8 Molex :: 6 SATA :: 10 Floppy :: 1 |
| Dimensions (WxHxD) | 5.90" x 3.40" x 7.10" 149.9 mm x 86.4 mm x 180.3 mm |
Parts & Accessories
| Image | Accessory | Description |
Output
FAQ
| Q : | What is the dBA of the power supply? |
| A : | 20% loading less than 29dBA, 50% loading less than 30dBA, and 100% loading less than 45dBA. |
