Industrial Chassis | iStarUSA Products | TC-2U50PD8G - 500W 2U High Efficiency Modular Power Supply

TC-2U50PD8G
500W 2U High Efficiency Modular Power Supply

High Efficiency 87% minimum
17ms Hold Up Time
Low Noise Design <24dB
Over Current Protection
Over Voltage Protection
Short Circuits Protection
Fully Modular

Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U50PD8G supports server, compact PC, and space constrained application. Standard feature includes high efficiency, short circuit protection,over voltage protection, over power surges protection, and fully modular cables and high performance system requirement.

Specifications	Download	Optional Accessories

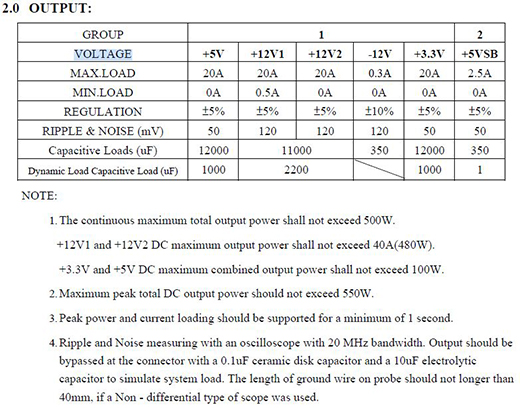

Output	FAQ
Compatible Chassis

Model Number	TC-2U50PD8G
RoHS Compliance	Yes
Output Wattage	500
Efficiency	87%
Connector Type	Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 5 SATA :: 4 Floppy :: 1 6pin PCIE :: 1
Dimensions (WxHxD)	3.94" x 2.76" x 9.65" 100.1 mm x 70.1 mm x 245.1 mm
