TC-2U70PD8UC
700W 2U High Efficiency Switching Power Supply
700W 2U High Efficiency Switching Power Supply
- High Efficiency 82% minimum
- Universal Power Input
- Over Current Protection
- Over Voltage Protectio
- Over Power Protection
- Short Circuit Protection
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U70PD8UC supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U70PD8UC supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
| Model Number | TC-2U70PD8UC |
| RoHS Compliance | Yes |
| Output Wattage | 700 |
| Efficiency | 82% |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 2 Molex :: 4 SATA :: 7 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 9.46" 100.1 mm x 70.1 mm x 240.3 mm |
Parts & Accessories
| Image | Accessory | Description |

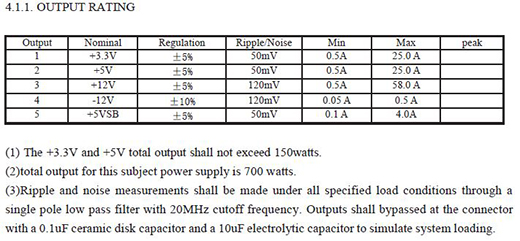

Output
