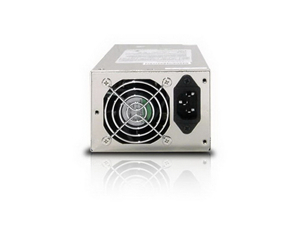

TC-2U80PD8
2U 800W High Efficiency Switching Power Supply
  • High Efficiency 80% minimum
  • Universal Power Input
  • Over Current Protection
  • Over Voltage Protection
  • Over Power Protection
  • Short Circuit Protection
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U80PD8 supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.

Model NumberTC-2U80PD8
RoHS ComplianceYes
Output Wattage800
Efficiency80-84%
Connector TypeMain Connector :: 20+4 pin
4pin 12V :: 1
8pin EPS 12V :: 2
6+2 Pin PCIE :: 4
Molex :: 5
SATA :: 2
Floppy :: 2
Dimensions (WxHxD)3.94" x 2.76" x 11.02"
100.1 mm x 70.1 mm x 279.9 mm
Download
Parts & Accessories

ImageAccessoryDescription

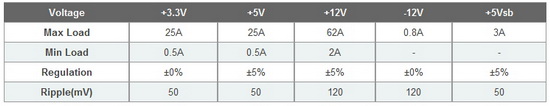

Output

FAQ


There are no FAQ entries for this model.

Featured Videos

There are currently no iStarVideos for this Item.
Compatible Chassis

Model #Description
E2M12HD2U 12-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane
U-316HDBuild-to-Order - 3U 16-Bay Storage Server Rackmount Chassis
